Uh so good afternoon everyone. Um my

name is Hershel Jan and he is Tanisha.

Uh and we would like to welcome you all

in this two hours workshop on the LLM

inference. Uh so the goal of this

workshop is to understand this domain

from the first principles uh dive deeper

into it and like understand what's going

on throughout the industry.

Uh a bit of background about us. So I am

a senior software engineer at Audible.

uh have been building MLA data platforms

for the past five years and on the sides

I have been writing this opensource

handbook on LLM inference

and Tanme he is the senior quantitative

modeler at XAN cup bank corporation he

recently completed his PhD and he has

been actively doing research in the

agent verifiers and the world models

Uh so a quick show of hands here. Uh Vu

here is like brand new to the LLM

inference.

Okay, great. And Vu here has like

deployed these models in production.

They have been tuning it. They have been

serving the production traffic.

Okay, great.

So this workshop is targeted towards the

beginner and the intermediate level. U

and all of the slides and exercises they

are in the repo. I will share that soon.

Here is the quick agenda for the

workshop. We will start with the problem

statement. We will try to understand few

of the pain points around LLM inference.

uh then we understand what causes those

pain points and build our foundations

from there.

Then we will dive into like two kind of

the optimizations that we do like the

model optimizations and the serving

optimizations.

uh and then we start learning about

different serving engines that are

available to deploy our LLM inference

solutions in production and we will

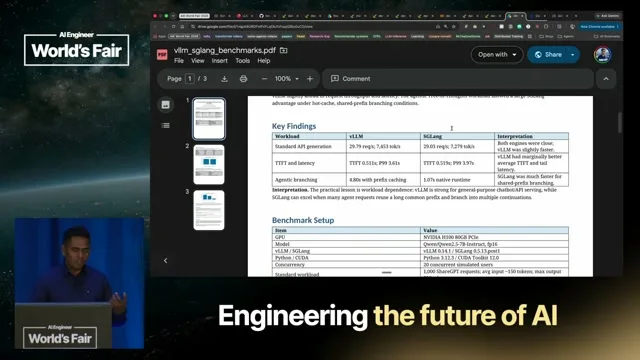

showcase some benchmarks and the

decision chart on like which engine to

use.

Cool. So to understand the pain points

first we need to know what is like LLM

inference. So, and probably a lot of us

already know this. Um, but yeah,

anything that you ask your AI to do like

whether it be generate a video, audio,

analyze any text, uh, analyze your

medical reports or like your tax bills,

all of that is like an LLM inference.

And this market is like approximately

$23 billion today.

uh semi analysis recently shared that if

you want to model like a Google search

queries with LLMs, you need like a

profit drain of like $36 billion

and query cost has to be less than 0.5

cents to keep your search business

profitable.

On the other hand, the business insider

mentioned like your AI has to be put on

diet

and everyone has to start auditing and

budgeting their token usage and all of

this is happening. Why? Because your

hardware is limited, compute is

expensive, your inference is expensive

and with the growing need of like more

and more AI usage, this inference cost

is rising more and more.

So

this stat, it's an old stat from the

open AI, but it's still it's still true.

So if you look at the like training cost

of the GPT3, it was like around $4.6

million. It was a one-time cost. But if

you see the inference cost that has been

like uh it's a recurring cost because

it's a operating cost that scales with

every user that comes in that every

token that comes in every session that

uh is being initiated on the like AI

and there are only two ways to basically

counter this. Uh one way is you reduce

your token usage.

um alternative is you should try to

optimize your inference solutions as a

inference service provider for your

customers and for yourself. And so this

um we have been seeing like lot and lot

of like new solutions coming out every

then and now. Um and so the idea would

be like okay we will try to build those

foundations that will help us understand

and evaluate like whatever ships next.

Um so yeah to get started like we will

do a quick demo like it's a short demo

of like what are the different pain

points around inference

u and so this is the repo uh I mean you

can pull it or you can also open it on

the GitHub

uh it's called LLM inference at scale a

bit of background here like four months

back when I didn't knew anything on the

LLM inference um I started learning it I

saw like lot of resources were

scattered. So we started putting it uh

like all together in one place uh so

that it could benefit people.

Um yes. So let me actually get out of

this slideshow mode and probably

go into

I will go to this extended mode.

Um

okay great.

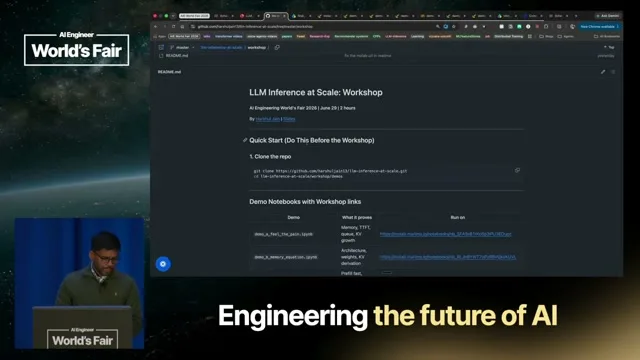

Uh yeah so in this uh repository if you

see a readme file there is like a link

to the slides. Uh so this it will be

like this folder where you have like a

pptx and there is like a benchmark

report in there.

uh you can always like download it and

then for the demo purposes uh we have

couple of Jupyter notebooks. Uh we have

like collaborated with Moab who are the

like Google collab alternative

and what they basically provide you is

like a free RTX 6000 GPU. It's a 100 GB

V RAM GPU.

So

and we have like already set up these

notebooks so that it becomes easy to

like experiment with and like all of the

assets and everything are preset for

you. Uh

so uh we will start with like a simple

demo a

probably

let me just see

Okay.

Um yeah. So

when it comes to the inference, you need

to do an inference on a certain model,

right? Uh for the workshop purposes, we

are using a simple ML 7B model. Uh it's

a small model of around 15GB in size. So

we we are going to like load that into

the GPU. So,

and we would look like some of the GPU

stats as well. So, we see like okay, we

are working on the 6,000 Blackwell. Uh,

and you might be thinking I'm not

running the cells because I don't trust

the Wi-Fi at conferences.

So, yeah. So, I would probably be just

going over the results uh that we kind

of ran previously.

Uh, yeah. So, we have like a GPU which

is like 102GB.

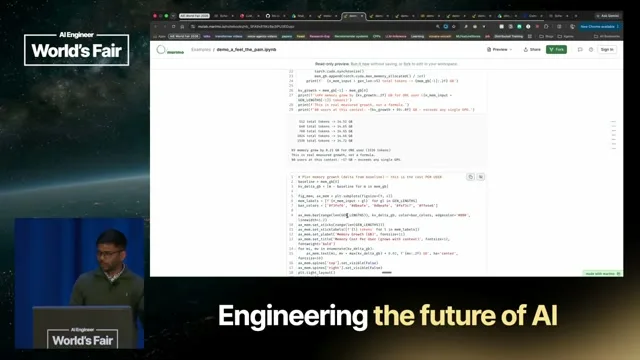

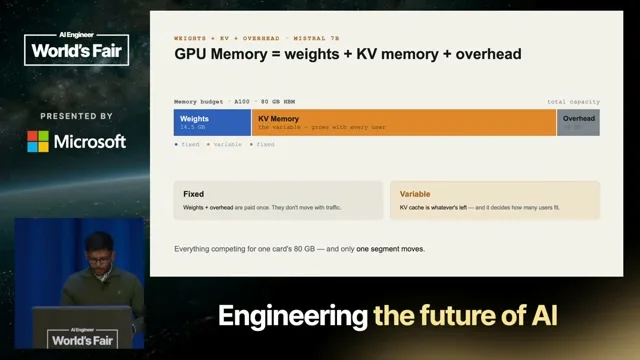

Uh now the first thing that comes to my

mind is like what's my memory

consumption looks like when I do the LLM

inference. So I load this model

uh and I see like okay I have like a 15

GB here. So I have roughly like 87.5GB.

And now when I do the like inference

here

uh what I notice is like the more the

number of inputs I pass more is the

memory that I need.

uh and it's increasing slowly but it's

still increasing. [snorts] So imagine

like if you have a context length of

like around 4,000 or 16,000 or 32,000

uh tokens. Uh so this memory could like

really grow big and it you could

actually get like all of those out of

memory issues.

Uh so definitely this is like your

problem one like your memory increasing

with the increase in tokens. So in form

of like a simple visualization it looks

like this.

The second problem that you would see is

like

the time to your first token it's very

very slow. Uh we measure it by a metric

called TTFT. It's a short short form of

it. uh and when you try to like measure

the TTFT uh with the like input size you

would see like longer the context

you would see like this uh TTFT being

slow. So now there are two problems.

Your memory increases with the token

size. Your TTFT increases with the token

size.

Uh sorry not the token size, the context

size.

Uh and then the third is the like

throughput. The throughput is like how

many tokens can you serve per second and

then how many users can you serve per

second. So if you take a very very

vanilla implementation on your local

system

uh it would be like very sequential. So

if you send like five requests all those

five requests would be catered like

sequentially rather than parallelly.

Uh and so like your request basically

takes more time to complete if you have

like multiple users.

So these are the like three problems.

There is a fourth one. I haven't

described it here. probably we will

build that intuition as we move forward.

Uh but let's remember like these are the

three problems the memory TTFT and the

throughput.

Cool. Uh I will go back to the slides.

Okay, perfect.

Uh so it should be this.

>> Uh is it visible?

Oh, you you need the

Oh, okay. Workshop. Okay.

Yeah. So, within that repository, if you

see a workshop folder, you see that

readme and then the readme has all the

links, the slides and the demos.

Uh, does that work?

Okay, perfect.

Okay. uh so let's start working through

the foundations like let's start

understanding

uh what are the reasons behind those

pain points and for that like we have to

look at this inference pipeline

um

so we get like an input text uh that

text could have like any number of words

you convert those into the tokens so for

simplicity you can assume one word equal

to one token

uh then you kind of convert them into

like the embeddings and then you send it

to the like transformers

uh like there are 32 layers of

transformers but that's specific to the

Mistl 7B different models have different

kind number of layers uh and then you

generate a new token and that token

basically goes back to the input then

you generate another token and that

keeps on going now in this entire

pipeline you would see like 95% of your

compute is like taken by these

transformer layers. So it's worth

looking at like what goes within this

transformer layer.

Within this transformer layer you would

have like more layers. You have like a

normalization layer, you have an

attention layer, you have a feed forward

layer and all.

And attention layer is the one I think

that has been very very famous.

Attention is all you need paper. I think

that's very well known. So attention is

the most compute intensive layer and we

need to understand what goes within that

attention layer.

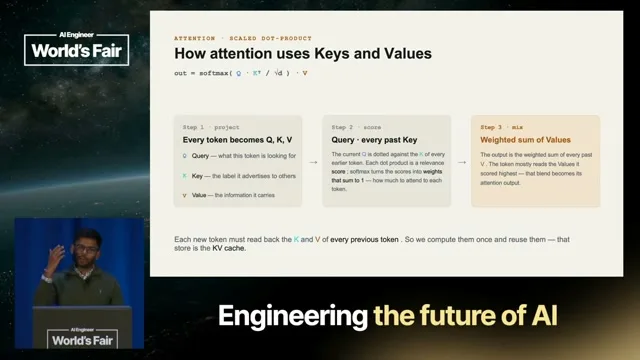

So what does attention do? Attention uh

so if you have an input text it needs to

find the attention scores of every token

with respect to all of the previous

tokens.

And to do that what it needs to do is

like it needs to project every token

into like a key query and the value

space. So in like in a simpler terms

just u understand this like if you have

10 tokens then it needs like the 10

different query key and the value

vectors. If there are 100 tokens you

would need 100 key and the value

vectors. If there are thousand tokens

you would need thousand key value

vectors. And so like your number of the

key and the value vectors they increase

as you increase the input size.

Uh and if you calculate the like KV size

per token

uh for a mist 7B it comes out to be 131

KV. Uh this is because like

uh you have two vectors K and V. You

have to multiply the size uh one vector

is like 128 dimensions. you have to

multi multiply it by 32 transformer

layers and then you have to multiply it

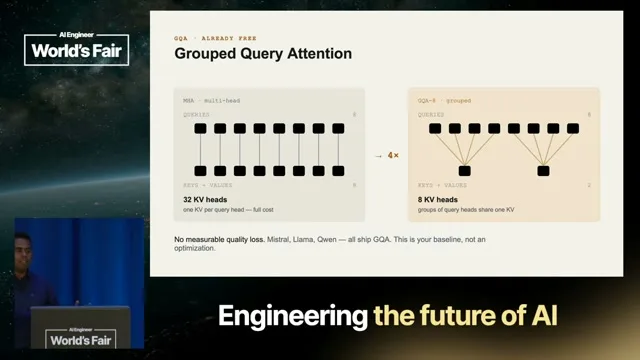

by the KV heads for ML 7B it's gate KV

heads it's not like 32 because it uses a

different kind of an attention mechanism

u which we will talk about for sure but

yeah so the KV size per token is like

your 131 KB now imagine if you have 4K

context uh So that size becomes like

half a GB. Uh if you do like 16k context

that size becomes 2.1 GB. Uh now

multiplay by the users like assume you

can serve multiple users together

at the same time within that GPU you

could have like 42GB with a 4K context

and 80 users. Um and if your GPU is only

like let's say 24GB, you are already

running out of the memory. So you cannot

serve that many users with that many

context.

To visualize this, look at a GPU memory.

So the GPU memory has like a model

weights which are pretty fixed. These

are pre-trained weights. Uh there is

like an overhead that is also fixed.

that also like that changes but it does

not change that much u overall you can

assume it's fixed and then there is like

a leftover memory so this leftover

memory is what being used by your KB me

like key and the value vectors so

assume like you have a one user you can

only serve that many key and the value

vectors or that many tokens which can

like fit in this entire 80GB uh like

memory that is left.

Uh

so we can show this with a simple demo

too. Uh

okay, let me

Okay, great.

Okay, great.

Uh, let me see if I can actually run

this.

What

probably?

Where the heck is this happening?

Okay, great.

Yeah. So you would see like the GPU is

attached.

So here we are just trying to confirm

the like memory based on the maths and

based on the intuition that we have

built. So the model memory is like let's

say if you have a 7 billion parameters

you are doing a 16 bit precision your

total memory comes out to be 14.6 GB

with you can basically verify that with

the maths. So if you do all that math

that comes out to be the 14.6GB.

Uh now comes the KVK and the KV size. So

this KV size is like your 131 KB per

token.

Uh and if you do that maths and you try

to like visualize this.

[sighs]

Oh, sure.

Wait.

Okay. And then let's just visualize

this.

Okay. Great.

Uh yeah so this is the like a memory

chart. So if you see like as your

context increases your memory keeps

increasing.

Then another thing to realize is like as

your users increase

uh then also your memory increases. So

if you want to serve like 160 users

uh on a GPU you can support like uh you

can only support like a lesser context

length. So there is always a tradeoff

between what context length you can

serve versus how much cost you can save

by like putting your multiple

uh users or the concurrent users into

like a single GPU. So you have to always

take that tradeoff and and we will go

through that like uh in couple of more

slides.

>> Uh can you repeat please?

Uh I'm sorry I'm cannot hear you.

>> Yeah.

Cool.

Uh okay. Great. So let me pull back.

So that was like memory. Uh we need to

understand uh why we had like uh slower

time to first token

uh when we increase the context length.

So for that like we need to understand

the two phases of inference and those

phases are like the prefill and the

decode phase. I think you would all seen

like a lot of articles but we just

wanted to explain it. Uh so when you

send like a lot of uh like when you send

these input tokens

what you want to do is uh you want to

build those key and the value vectors

that I mentioned for all the tokens.

Then you want to compute the attention

scores of every token with respect to

the previous token. All this operation

that you do it's a very very metricsh

heavy uh it's a very very compute heavy

operation and we all know like the GPUs

they are like very well suited for a

heavy compute workload so we call like a

prefill to be like a compute bound uh

and it does take some time to complete

so whatever time that this phase takes

to complete that's your time to the

first token

So if if you have like a more input

tokens, you have to generate more key

value vectors. You have to do lot more

attention math and because of that your

TTFT becomes more more slower.

Where is if once you generate one token

you need to keep doing this to generate

another tokens sequentially one after

another. But in that process every time

you have to build the key and the value

vectors of all the previous tokens

which is same as prefill like you were

building key value vectors there also

here also but in decode phase you are

only computing the attention math for

the new token

and that is why it's a very less it's

lesser compute oriented

and it's also called as memory bound. We

will see it shortly why it's called as

memory bound.

So in a classic timeline you would see

prefill and decode phase like this. So

time taken by prefill that's your time

to first token and then your time taken

by every decode step that's your

uh basically your inter token latency.

So that's like the fourth metric

uh that you need to worry about like

what's the time being taken by your

decode step.

Okay, cool. Uh

now why why does the like decode step or

why does decode takes time and why it's

being called as like a memory bound

operation? Let's try to understand that.

uh to understand that we need to look at

how the metrics map basically works on

the GPU on a high level. So GPU has two

kind of memories. You have a high

bandwidth memory. You have a shared

memory.

So the high bandwidth memory is a larger

size but a lower me like lower

bandwidth.

By lower bandwidth I mean like you can

transfer data out of it at a lower rate

compared to the shared memory. So the

shared memory is smaller in size but it

has a very very high bandwidth. Uh that

means you can transfer data in and out

of it with a very first thing. So when a

when you have to do a metric math so you

have to pick the data in chunks from the

high bandwidth memory you have to put it

into the shared memory.

Do that math write back the result into

the high bandwidth memory.

uh for the prefill phase when you have

to do this you have to do this matrix

math only once but for the decode phase

you have to do this metric math uh like

uh again and again because you're

generating each and every token

sequentially

and so like you it doesn't matter like

how fast is your decode

because now you can transfer your data

out of the high bandwidth memory into

the S shared memory at a certain speed

because you are limited by the high

bandwidth memory bandwidth speed

and so that governs your like token

sealing like at what rate can you

actually generate tokens out of the

decode step.

If you look at this in the roof line

plot

uh so there is a left section which is

called to be a memory bound.

Mathematically it's governed by the

arithmetic intensity.

Arithmetic intensity is the number of

flip-flop operations that you perform

per bite of data being transferred. So

for the decode step

uh decode step since you are

transferring lot of data like the key

and the value vectors of the all the

previous tokens the model weights but

you are doing the like less computation

because you're computing attention math

for only one token. Uh so it's

arithmetic intensity is very low but for

a prefill phase you are transferring the

data once but then like you are doing

this heavy computation and so it's

arithmetic intensity is very high. So

now you know like in terms of

mathematics like why the computer like

why the arithmetic intensity of prefill

is very high compared to your decor.

Uh [snorts]

okay

so this is like another small small

demo. Uh

every time I have to Okay.

Okay, great.

I hope this is already running. So yeah,

again we are loading the model.

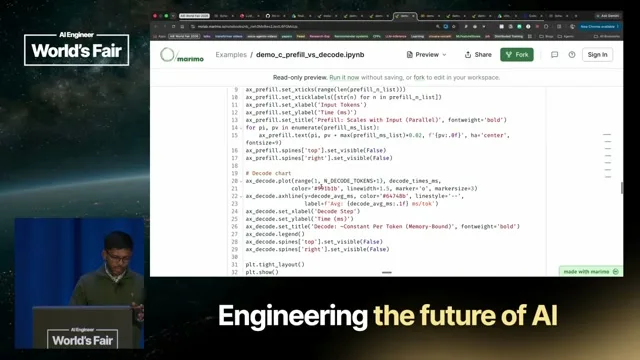

Now this is the like the prefill cost.

So what we are basically doing is uh we

are getting the like um the input uh

text and then we are trying to generate

this um the prefill step the amount of

time it takes. We see like as we

increase the like size of the input

tokens this prefill is increasing. So

you and this is the reason why your TDF

increases

and then like your decode time. So the

decode time is like on average it stays

about the same. Uh and so if it is like

assuming like you ignore the like cold

start your decode time is like

approximately around the average line.

it it it it is still impacted by like u

the input size. It's not like it's a

constant uh time and it is because it

still needs to pull the key and the

value vectors from the memory for all

the previous tokens. So there is still

like uh that uh basically small increase

in time that you would see with the

decode step. And then this is the like

classic uh roof line plot.

Uh okay.

Presentation.

Okay. Five. Okay. Great.

Okay. So

now now let's try to understand like uh

the throughput dimension. You want to

understand how many users you can

actually serve and I think we saw like a

diagram of the GPU memory where we saw

okay there is some memory that is free

for the key and the value vectors to

grow.

So assume like you have just a single

user

uh

what's the total KV size that you have

you can basically support it's defined

by your context limit.

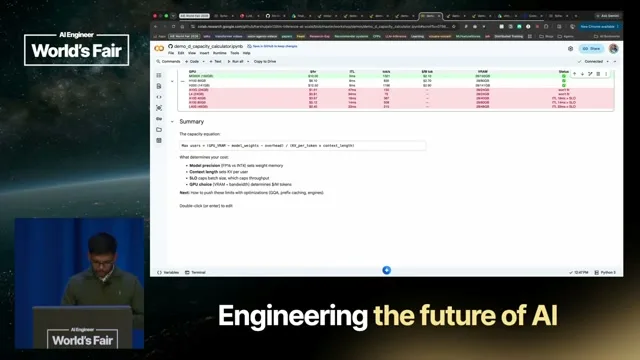

uh the max users that you can support is

like whatever is your GPU uh

availability like whatever is the memory

that is available in the GPU you divide

it by the key and the value size per

user uh and when you do that like it

comes out to be like your the concurrent

users.

Now assume like your GPU is fixed, your

model is fixed.

Uh

so

your KV size per token is fixed. There

are only two dimensions that are left

here which is context and your

concurrent users.

If you want to serve more concurrent

users, you have to reduce the context

length. If you reduce the context

length, you could impact your quality.

Uh so these are the two dimensions right

now that we are trading off.

Then if we but can you actually serve

the like max number of concurrent users?

Uh in an ideal world probably not

because

every business has like a latency SLO

that we have to meet.

So

if you remember like in the decode step

I said the time for the decode still

increases if you have more inputs.

It also increases if you have more

users.

So ultimately

uh your inter token latency also gets

impacted

if you have like a higher batch size and

your TTF also gets impacted. So now

there is a third dimension you have to

worry about which is like your latency.

So the three dimensions that you have is

like a quality latency and the

throughput. So it comes out to be like

this trade-off triangle where you have

to choose between the two. So for a

premium chat application

you would want to prioritize definitely

the quality and you want to prioritize

the like the latency. You would not want

your users to wait infinitely for the

like or like not infinitely but probably

for the larger latency.

You can always sacrifice the number of

users you can support on the GPU and

probably take that costed being more

customers

in form of like and and like if you

consider like an agent uh sorry the

async agent workload you would want to

like prioritize definitely quality and

the throughput

uh because these are the longunning

tasks

uh and you would want to like serve as

many as concurrent tasks. fast as

possible but with a very very higher

quality.

And often like we think like okay if the

GPU is like a very expensive GPU

uh that might not be a good fit for us.

Uh but it turns out that could actually

serve you the lowest cost per million uh

tokens.

Uh but you really have to trust your

kind of calculations on the max users

that you want and like uh you really

have to make those estimations uh

correctly.

Uh

so we do have like uh

let me just

Where is this?

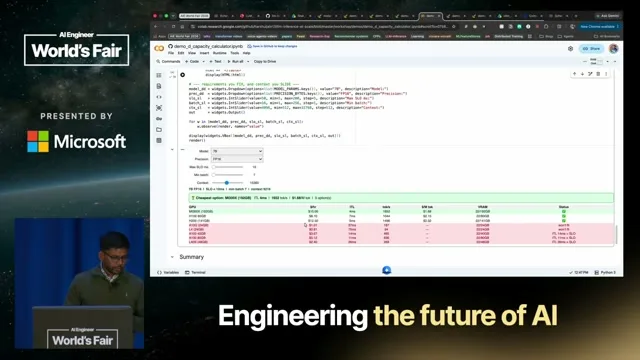

Okay, great. So, for the capacity

calculator, uh there is like a link to

the collab because I was facing certain

issues with molab. I had to migrate out

the wall widget library and I didn't

have time. So, being lazy, I just picked

collab there. Uh apologies to Moab.

Uh

so my VR is connected.

Okay.

Wi-Fi probably.

Okay. Great.

So what we have done over here is we

have like shaded some like the GPUs with

their V RAMs, bandwidths, the flip-flops

and the cost per hours. Um

then we kind of like built this simple

uh like uh capacity calculator. This is

just a KV visualizer uh where you kind

of like when you increase the number of

tokens uh you see like your KV size it

increases and when you increase the

number of users your size is like

increasing at a much faster rate

and then

in this capacity calculator uh

let it run.

So we have like a model which we which

is like a 7 billion parameter model that

we selected.

We set the like precision to be FP16. Uh

now we decide the way we basically go by

the GPU decision is you have to decide

what's your like you have to fix one

dimension first which you care about the

most.

for premium chat I mentioned like

latency is definitely the one

uh and then like for the async workloads

the batch the minimum batch size that

you want to serve for from like a single

GPU that is the second dimension so you

want to fix these first so I will go

about like in a premium chat application

uh

so I can go ahead with like 10

milliseconds latency a minimum batch

size I don't care like I can so I'm okay

with like probably two

uh

okay so probably with the seven

concurrent users on a single GPU and

then like my context limit is very

important to me because I want to focus

on the quality as well

uh and so like I do see like some of the

GPUs so the H18GB

it's like a $8 per hour but like am I

300x is it? Yeah. So it's like around

$10 per hour but if you do all that

throughput math that we shared in the

mathematics before you could find like

your cost per million dollar tokens that

could be very very that could be like

lesser. So

you need to do such calculations by

fixing those dimensions and you need to

decide your GPU to like reduce your kind

of inference cost. This is at least the

first step that you can take towards

optimizing the inference.

Okay, cool.

So the next slide. So let me

Okay, great.

And so like now the next thing is about

the model optimization. So we are now

basically have built that foundation

where we understood some of the pain

points, reason behind those pain points,

why those were happening

um how we could like address that GPU

capacity thing. We need to understand

what can we do like what can we further

do about it. So it it is about the model

optimization and I think I would like to

invite Tan I he can talk more about

these model optimizations provided he

has worked uh on this like during his

research times

okay I can control

yeah here okay hi everyone uh mic check

am I audible at last yeah okay so hi I'm

Tesha I work as a senior quant modeler

and also I am an AI researcher. My work

focuses on a agent verification and

right now building world models. So for

this one model optimization

before we start model optimization so I

created a research template so that it

will be easy for us to understand all

these complex things. I so our template

is simple. First we will identify the

problem. Second step we will solve the

problem using two algorithms. These are

just fake algorithms. So first algorithm

is called ostrich algorithm. Whenever we

see uh just like ostrich whenever we see

a problem ostrich put their head into

the sand. So same thing we will do

whenever we face a problem we will just

ignore it. So this is an important

algorithm we should follow. Second one

is created it is called world cup

algorithm. For example, we don't know

who will win this FIFA World Cup. So,

what organizers did, they uh break the

48 teams into 12 groups, uh then round

32. So, round 32 right now is currently

going on. Uh then round 16, then

quarterfinals, uh then semi-finals and

finals. So what they are doing is that

uh they are breaking it into a smaller

problems and the useful results are

moving forward. So same analogy or same

algorithm we will use uh to understand

this model optimization all those

things. So yeah let's start. So I have

one H100 GPU.

I have to use this open-source model

what is called GPTOSS

120 billion parameter model. So right

now I think it's so they have trained it

on BF float 16 and weight is 240 GB.

What should I do?

This is the problem we have. So first

thing what we have to deal do is that

240 GB and 80 uh GB H100.

So and I have to fit only in one GPU or

not in multiple GPU. So what can we do?

I think simple step is that just

compress it. But how should we compress

it? Uh that's the another challenge. So

if we compress BF BF float 16 to FP8 uh

then it will be around 120 GB but our

GPU H100 is still 80 GB. So what I think

they did is that they compressed it into

further MX uh MX FP4 and I think size is

around 65 GB. So this is something we

can do uh compress but question so and

we will use over this ostrich algorithm

we are assuming that uh there is no loss

in compressing a bigger model into a a

smaller size. Second thing

in uh in this one okay yeah so in this

one in this slide we have used this

mistral 7B so 7 billion parameters so

it's a small model 7 billion parameters

so uh so if you multiply it by two bytes

so it so weight of it's around is 14

14.5 GB which can easily fit into H100

or even a a40 so

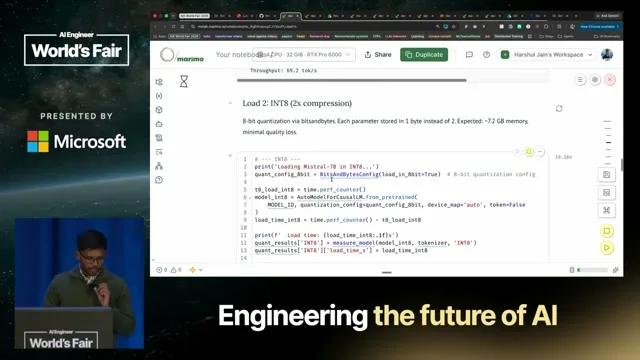

so Next uh what we can do is that like

mistral 7B instead of compressing it a

floating point 16 we can apply different

techniques like int 8 or int4 or nf4. So

basically we have to just use ostrich

algorithm and just believe that uh there

is no quality loss kind of things but

somehow we also have to mathematically

prove that by doing some kind of test

testing on some external benchmark that

whether it is working or not. So the and

this comes under post training

quantization kind of thing. One can also

do uh this one uh during finetuning one

can also do this kind of quantization.

This comes under a quant training kind

of thing. So uh let's move to our next

problem.

So

we have this huge matrices just just

imagine imagine uh 1,000 by 1,000 uh

dimension matrix A and another matrix

matrix um 1,000 by 1,000. So if we

multiply uh if we multiply by this two

matrices so number of operations will be

1,000 raised to the power q and this is

kind of a problem in terms of uh uh in

terms of computing. So we wondered our

matrix multiplication should be fast and

it should save memory. So what should we

do? We have a giant matrix. Okay, let's

take this one. Uh, Mr. 4096 by 4096.

What should we do uh to

solve our problem of speeding up the

things and saving the memory 4096 by

4096.

So first thing is that we will use just

our world cup algorithm. We can decide a

random number just break the block

vertically. It does not matter what you

are choosing it. So you have so let's

say uh we have 4096 uh columns we will

break it uh we will break it into a

group of 128 column each. So 128, 128, 128

128 uh vertical vert uh vertically so we

will get a 30 we will get this 32 blocks

if we divide this 4096

then

what will happen by doing this thing? So

if we just divide this one vertical

vertically then we can use a multiple

GPU to speed up the process. So this

kind of thing is called multi head

attention.

So what else can we do? We have a big

matrix like

uh as I have mentioned that ostrich

algorithm. So our main problem is

sizing. So what we what we can do is

that instead of having all those 32 uh

32 vertical blocks we will throw away uh

31 blocks and we will assume that one

block is sufficient enough that all the

queries uh can handle those blocks. Our

loss will be almost negligible and we

come up with this algorithm uh which uh

and this algorithm is called a

multiquery attention. So as we can see

right now we are at two spectrum. One is

multi head attention where we split it

into 32 blocks and use different uh

different uh GPUs or do some parallel

processing and at the same time we are

just throwing 31 blocks and uh we are

calling this is as a multi-query

attention. So

uh so at both extreme we should be come

up with a middle ground like something

we can say that

instead of throwing all the 31 uh maybe

we can group we can group we can group

some of the blocks together so that uh

uh and we can assume that uh similar

blocks will attend to a um similar kind

of uh queries. So this kind of technique

comes under grouped query attention

which is very popular right now. Uh even

in uh even in mistral or in other models

this grouped query attention works. So

right now we have understand that we

have a big matrix uh we can divide it

the way we want and doing some

mathematical calculation prove that loss

is almost negligible kind of thing. So

what else we can do?

So after that uh after this grouped

query attention

uh

see

uh we have a big matrix uh one is one is

key and one is value.

Let's compress that matrix into a latent

vector and then come up with some

algorithm to uh reconstruct from latent

vector uh to our original matrix. So

this kind of a strategy comes under this

one um multi head latent latent

attention but again it has some problems

with rope because rope is position

dependent and uh and it is position

independent kind of thing. So yeah one

needs to also include some uh index for

keys also so that one can map it. But

again main problem is that why why we

are why we are multiplying all those big

matrices. So because that's how this

attention mechanism works that

each token will pay attention to every

token. So how about let's don't pay

attention to all the previous token only

pay attention to the important tokens uh

which is important for us. So this is a

kind of uh this kind of field is uh

evolving. So this comes under sparse uh

deepseek sparse attention. So

uh yeah and yeah yeah yeah so okay next

yeah so next one is flash attention. So

uh so in flash attention so main pro so

main problem is that uh

uh so so currently so so currently not

currently so right now almost everyone

uses flash attention but way in 2022 or

2023 uh so that's how it works that's

how it works is that uh so

uh this

Q K query and A and key matrices they

were in HBM. Uh it loads uh it uh first

uh it loads into uh this one uh tensor

core and it do some uh it do some

calculation and then it will uh write it

back to uh HBM and then uh this process

goes on multiple times. So in flash

attention uh what they did is that

uh is that instead of multiplying the

whole matrices so they just divided it

into like our world cup algorithm

divided the bigger matrices into a small

tile and only put those small tiles uh

into a SBM so that uh it can process

multiplication fast and just uh keep uh

keeping track of this some three

variables so that they can calculate

this online softmax.

Yeah.

Next one. So, yeah. So, so this is just

mathematics. So, if we have a multi head

attention if it is 524

uh KV uh then it depends upon how much

how much grouping we want and so if

instead of 32 KV head we only want to

use uh 8 KV heads. So uh so so we can

get a compression of 4x times and this

multi head latent attention this formula

depends on the model to model how many

layers your model have. So in the

original deepseek paper uh I think they

have some 128 dimension

128 d 12 I don't remember the exact

dimension but according to that uh they

have used uh this one latent vector in

which they have used 512 as a dimension

and some 64

for for rope index. So and then they

show that it is a 50x 56x

uh more compressed than multi head

attention.

Okay.

Yeah. So uh so yeah so this is uh so

this is the uh this is the trade-off uh

trade-off diagram. So here I think we

have not talked about this linear

attention or mamba. So main problem is

just all this m Matrix multiplication.

Right now everyone is using attention.

Suppose in future

uh if we don't want to use attention or

rather than generating tokens

sequentially just use maybe diffusion

models where we can generate everything

simultaneously. So all these algorithms

will change also. But here I think they

have two more. One is linear attention

and one is mamba. So according to uh

this slide so

if we are not compressing anything so

MHA is just we are parallelizing the

process so there is no quality loss so

it's a good and then this uh grouped

query attention which is I think almost

uh every model is using uh just GQA and

DSA kind of thing or yeah

I think same thing we are providing in

the attention mechanism scorecard So uh

so I think uh this one mha quality is

good throughput is uh throughput is okay

and for grouped query attention it

depends upon your use case also though

yeah though

quality is almost similar to uh multi

head attention but use case also matters

a lot yeah multi-query attention is just

one extreme we are

I don't know why but we are just

assuming that we only need one block and

all the queries will attend to that

smaller smaller block. So, so quality is

not that great for M for MQA and this

multi head latent attention. So yeah if

you have tried some this deep seat

models so I think uh they are doing

great job yeah in in quality wise

besides that sliding window so all these

are sub techniques which

yeah yeah all these are some techniques

like I just slide the windows all those

things and instead of yeah instead of

multiplying everything so linear

attention is just saying that sum

summarize everything first uh and then

look up into it and then mamba this is

just a state space model. Yeah,

I can cover that. Okay.

Uh cool. Uh thank you T.

So for the model like optimizations we

also have like the two notebooks

here.

So there will be

I have to go to this.

Okay. Uh so for the quantization uh like

the demo

uh this is is this already run? No. Let

me just run this.

Okay. So we are loading the model which

is like uh ML 7B.

Uh so

this one is like with the FP16 baseline.

Wait.

Uh, did it run?

Okay. So, it's uh two millisecond run.

Did this run? Okay. So, yeah, this time

it's fetching that model with the FP16

precision.

the Wi-Fi.

It's going to take time.

Okay.

>> Yeah, it because it's downloading the

weights from the hugging face.

>> Huh.

Yeah. So, MOLAB is like running online.

>> Yes.

because it needs to make the network

call through to the hugging phase and

like it fetching

I don't know like but it's taking time

to download probably

Okay.

So good. Okay. So here we see like the

memory size is like 15 GB around

approximately with the FP16 precision.

We are trying to do the 2x compression

as Tmet talked about with the int8.

Let's download. Okay. So we do see like

your memory size is now like 7.5 GB.

What that means is now you have a more s

more memory for your KV to basically

grow. That means you can either serve

higher context limit or you can serve

the higher concurrent users there.

If you do the like in your basic you are

doing the 4x compression so that with

the 4x compression it would be more

lower. It would be I think around

3 to 4 GB.

Yeah. 4.5 GB

and Yep. So this is Wait.

So this is just a basic plot

of like

so these are the like theoretical

numbers. uh we are not doing the like

any throughput test here but uh usually

you would see like your memory increases

so pro you would also have like a bit of

higher uh throughput.

Uh from some of the benchmarks that we

studied we saw like the intate uh

compression it does have like a lower

throughput.

Okay. And then there is like a demo on

the like the attention mechanisms.

So for the attention okay I have to run

this.

Uh okay so it has run. Oh, wait. Why

does it say no GPU detected?

It should say the GPU should be

detected.

Oh, okay.

Wait,

but this is surprising.

Yeah, I guess it's not like able to

detect the GPU for some reason.

Uh we do have like a GPU here.

Uh okay, never mind.

Yeah. Yeah. So, but the like basic idea

here was more like

as you try to move towards like

compressing the computation like by

using different attention mechanisms

like moving from the multi head to the

grouped query attention and then to the

MLA you would start seeing some

optimizations.

Um I think yesterday night we were doing

some benchmarking. Uh I wanted to

correct this part. Uh so it wasn't like

50 56x it was 14x. Uh basically the demo

had a mistake of like a computation uh

where it did not multiply the number of

layers.

Uh yeah so apologies for that. Uh so

this MLA is like a 14x savings work in

comparison to like your multi head

attention.

Uh so now that we have understanding of

the pain points, the foundations, the

one side of the optimizations which is

the model optimizations,

we want to talk about what can you do on

the like the serving side.

So

the first thing is we saw like when you

perform like a simple decode step you

are pulling it you are basically pulling

the model weights and then you are

recomputing the key and the value

vectors for all the previous tokens even

though you already computed the those

vectors for the tokens.

So there is definitely like a lot of

compute wastage.

Uh and if you kind of analyze the time

complexity of it, it would come out to

be O of N². Uh and the way to resolve

that is like a classic trade-off against

the memory. You can maintain a memory of

those vectors against the tokens and you

can reference that memory. So that

memory was called as like KV cache.

uh and the like the flow looks something

like this

and then based on this KV cache there

were like four optimizations that were

really possible.

Um

the first one is about the page

detention. So what's the different

what's the problem today? So when you

send like multiple requests as the input

to the GPU

these requests are in a batch

uh every request is allocated like a

continuous memory storage let's say of

I'm just taking an example like let's

set uh 2 KB

however like your request needed only

let's say

uh 1 KB so there is like u 50% of that

memory fragmentation.

Uh and this fragmentation basically

leads to the memory wastage. That means

there was a space in the memory where

you could have served more requests but

you could not because you were looking

for that contigious block of the memory.

So an inspiration to was being taken

from like how the OS works like you

maintain a logical memory and you

basically have a physical memory.

So in the logical memory it would still

feel like

uh that the KV vector for the like every

token is like a contiguous

but it will be mapping to a different

physical address.

So that really helped like saving a lot

of memory. Uh and it was only possible

because you they considered like memory

as a set of blocks and you would be

dynamically allocating those blocks as

the request need as the like new tokens

comes in and they need that kind of

memory.

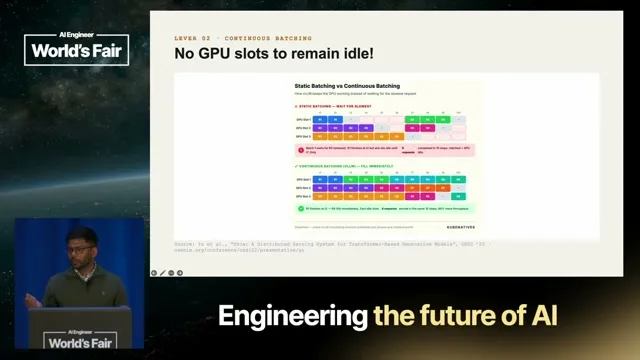

The another lever is like when you are

sending multiple requests

in the batch

GPU is like taking those requests

but it does not accepts the new batch

unless all the requests in that batch

gets completed. So the diagram looks

more like a page retention but here it

is more about like when is GPU available

to take the next batch. So there is a

time period where GPU is like sitting

really idle

and you want to like resolve for that

and for that like the idea was like okay

let's do that continuous batching.

So the continuous batching also really

helped with like throughput because now

you can ship more requests pretty

quickly. Keep making sure like GPU

always uh get is always like occupied

and it's not like uh sitting idle. So

you are saving on that compute.

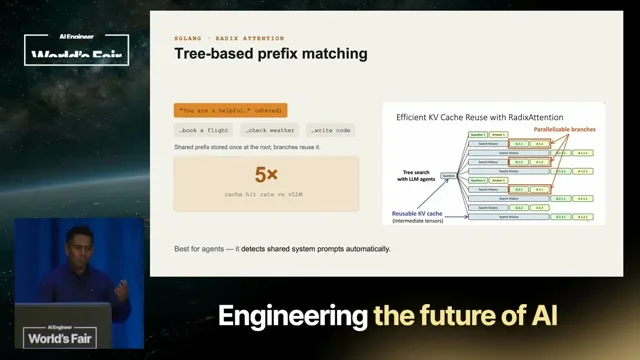

The third is the like prefix caching. So

you remember like the KV cache helped

you save the computation for a single

request across the tokens.

But what if like you have the same

tokens across multiple requests? How do

you basically save against that? So the

prefix caching uh which was introduced

by VLM

exactly counters that

and then the third is like we talked

about the fourth actually. So we talked

about quantizing the model

but you could also you can also like

quantize the KV weights.

So that means now you you need like a

lesser space for your key and the value

vectors. That means you can serve more

key and the value vectors in the memory.

And that means like you can serve more

tokens. That means you can serve more

context context limit. And that means

like you can serve more model quality

and all of this is like uh already

present in the VLM.

You don't really need to reinvent that

wheel

uh and you can like deploy this VLM in

production and you could see that

basically growth.

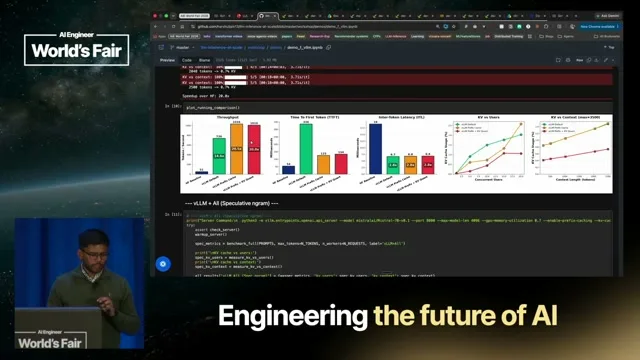

So next we have like a benchmark that we

did. So this benchmark was

let me see if I have that

here

the demos.

So doing this benchmark takes like

around 1 hour because you have to

continuously stop and like restart the

VLM servers and you have to load the

models and all. So it does take a lot of

time in doing the testing but I can like

really tell you here what we are doing.

So we have kept the model as same like

the Mistful 7B.

Uh and then we have like the set of

input questions that we are sending. Uh

consider them as the prompts. Then we

have couple of helper functions here

like checking the server is up or not.

The server is the VLM server.

Then there are helper functions to get

the VLM metrics.

uh and I will talk about like what those

metrics are. Uh then there are like lot

of the benchmarks and all and then you

have to measure uh the KV usage and all.

So these are the like helper functions.

So the baseline is very simple like we

have a hugging phase baseline.

Uh this is the raw like sending the text

to the LLM getting back the response. We

see some results here. We saw like

hugging phase has a throughput of like

around 51 tokens per second. Time to

first token was like 54 and then the

inter token latency was 19.

Uh this bas uh this was all run on the

h100.

Uh and then we start like a very default

VLM server. So by default VLM provides

you the page detention, continuous

batching

and the KV caching.

So three things are present by default

and when you try to compare those

benchmarks you see your throughput is

like almost 15x you are able to serve

more tokens per second

then

your time to the first token

uh that also rises

and then your v the inter token latency

kind goes down and then your KV versus

users and the versus context rate

increases for sure.

Now when you apply the prefix caching to

it

so with the prefix caching you see like

your throughput increases

more your TDF decreases your inter token

latency is approximately same uh and

then your KV cache usage versus the

users it's kind of going down

the vers context it's not going down

it's approximately same I think this is

also approximately same it's like not

that uh big of a deal

when you apply the like KV quantization

on top of it.

So it becomes like so so you see like

your throughput is like almost similar.

Your time to first token is similar.

Your token latency is similar but then

your KV usage actually goes down. And

this is because like you have quantized

your key value space.

Uh and then there is a concept of

speculative decoding that TME will talk

about. Uh

so when you try to benchmark those so

you also see like there is a uh like a

bit of like the less KV usage there

although like the results are

approximately same.

So yeah, I mean overall like these are

the like the metrics across probably I

should

zoom out. Okay, it's not zoom out. It's

not working.

Great. So yeah, this is the like VLM

benchmarks. Um it's your production

default by the way. uh we will also

share that decision tree uh when we try

to talk about like the other engines.

So

yeah, so we should talk about like what

are some of the other inference

optimizations we can do on top of it and

what were some of the other solutions

that came out.

Uh so I would like to again invite

Tanme. He's going to talk about like

some of these optimizations.

Oh, sorry. Uh I'm so sorry. Uh I didn't

enable the slides.

Uh what was the Okay, great.

Perfect.

>> Which one?

>> The speculative.

>> Yeah. Thank you, Hersel. Yeah.

So,

so all these are like speculative

decoding all these are the uh so so what

we say uh different flavors of same kind

of soda. So this uh this technique comes

under decoding accelerator. So first one

so we are only talking about this

speculative decoding but there are other

variants like self speculative eagle

medusa

I only like I think uh this one eagle

algorithm

personally I don't think

speculative decoding works because main

problem is alignment okay so let's start

with what is uh speculative decoding

main problem is that in transformer

architecture All these tokens are

generated sequentially one by one by

one. How about just use a smaller model

and let a smaller model to generate

maybe let's say four or five tokens and

this teacher model or we can say

according to our world cup algorithm we

can say referee. So referee will decide

how many uh tokens it accept and this

loop keeps on going on and our

assumption is that there are certain

domain where this kind of things will

work like maybe in decode maybe in

coding or where almost there is no

creativity uh each uh code or syntax is

almost similar. So maybe it can help it.

But uh based on personal testing, I

didn't find this speculative decoding

useful at all. But other techniques like

uh self speculative decoding where

teacher model also have one head

auxiliary head and it will do same

similar kind of things what this base

model or small model is doing it. But

then this eagle came Eagle 1 2 3 I don't

know how many version versions are but

it is just saying that instead of

creating instead of generating tokens uh

let's uh train a small model inside

train a small model and just take a

features from one of its uh one of main

models layer so that instead of

generating token uh it will generate uh

this features so so uh so eagle is uh

Eagle is better compared to this other

kind of technologies and then another

one is Medusa which is just saying that

just generate all the tokens parallelly.

Uh okay. So here so here in this slide

>> yeah the next slide.

>> Okay.

Okay. Yeah. Okay. Now we come to uh now

we will come to this one prefix caching.

So I don't know whether people are using

this one static prefix caching or not

but thing is that main problem with

prefix caching is that sometimes we type

and make a small kind of mistake and

this standard static prefix caching is

basically it takes a prompt do some

hashing and then next time when user

asks similar kind of question it will

try to match the hash. So if hash is uh

if hash is equal then then it will

instead of recomputing all those K and B

it will just uh take it from from the

storage but you know that sometimes we

make a mistake or maybe we can just

change a word or letter something like

that then we have a very higher uh cache

uh hit cache miss hit rate so that's why

uh this one uh radics tree so radics

tree is becoming very popular and also

also because of agent. So I think almost

everyone is doing agent and most of the

computation is going during TT during

test time inference kind of thing where

we keep on asking same kind of questions

and prompt for example you are an expert

software engineer multiply by 200 times.

This kind of loop keeps on going inside

this uh agentic agentic kind of things

where it is al necessary to keep uh or

store similar kind of things in a radics

tree. So radics tree is just so so radic

tree is just advanced version of this

prefix tree where where we will just

where we will just collapse a node if it

does not have a does not have any branch

and for this kind of work where keep on

repeating same thing this uh red x tree

helps a lot and st lang uh use this kind

of algorithm

for prefix caching.

Okay. Yeah. Then there is another thing.

One is tensor RT LLM. This is very

confusing. When I first started, I was I

was just confused. What is tensor RTLM?

So yeah. So tensor RT is just a uh it's

just a standard uh SDK kind of thing.

Tensor RTLM is just an inference engine

just like VLM, SG lang. But problem is

that it is related to Nvidia. They

optimized each and every layer and every

problem as I mentioned in our world cup

algorithm. They just break everything

and optimized everything at hardware

level also. So uh yeah. So okay next.

Yeah. So for this workshop we also uh

did some benchmarking like which is best

uh so our setup was something similar

was so so we did two kind of testing.

First one is without uh without agentic

testing where we just so

we use this shared GPT uh this one data

set and uh just ask those questions uh

using VLM and SG lang.

Okay.

Yeah. Okay.

And let me just zoom it up. Okay, great.

Okay. Yeah. So, yeah, for this workshop,

we used H100 and of our first testing

was that uh we just uh we just asked uh

we take questions from shared GPT and

put it into VLM, SG lang and we found

that actually there's no statistical

difference between which one is better.

So both have almost similar kind. So

both are fulfilling similar kind of

request per second uh TTFT and latency.

So but only difference we have seen

during agentic uh agentic branching. So

uh what we did was that we asked that

similar kind of question that you are

the best this one software engineer in

the world just solve the problem of

traffic congestion in this city kind of

thing. Then we put this into LLM. LLM

generates some output. Then we did

another uh round two also. So once this

LLM generates this output, then in round

two we have specially mentioned that uh

provide uh review the proposal and give

ratings from 1 to 10. So this uh two

turns we did uh and this loop keeps on

uh repeating it. Uh what we found is

that for this kind of

uh workflow where everything is standard

all those prompts and context

engineering comes into the picture. If

we do proper this agentic branching then

I think uh this HG lang is three to four

times better. But again this depends

upon the different setup maybe uh if you

do it uh you may get different results.

Okay. Yeah. So I think uh did we

uploaded it on GitHub? Okay.

>> Yeah. So the PDF is like also in the

drive. Uh it's the same link as the

slides.

So a quick summary here.

So on a standard API workload throughput

you would see like a VLM and the SG lang

would behave same. So if you don't have

if you have like a standard workload

definitely go with VLM. It's the

production default anyways. But what

Tanme was also saying is when you try to

like make it like agentic workloads that

is where like your SG link really shines

uh and uh it kind of like provides you

all the benefits.

So yeah keep like VLM as a default but

if you have agentic workloads probably

try to move as the towards the SG lang.

if you're not happy with DB LLM. Uh but

uh okay. Uh let me

Okay.

And then like there is like the like a

comparison that is done at the 120

billion like for the GPTO OSS 120

billion. Um this is a benchmark that was

prepared by clarify. So there is like a

blog link here. Oh nice.

Okay. Yeah. So they did the similar

benchmark and they included like a

tensor RT LLM in it.

Definitely you can always go through

these benchmarks and try to understand

which basically suits your use case. As

we mentioned like Tensor RT they try to

optimize the hardware side as well

having the peak hardware performance.

Wait uh this is

okay.

Yeah.

And then like in terms of when you want

to dep pick like your engines

once you figure out like between VLM, SG

lang tenserati so that there are some

new engines that are popping up Nvidia

Dynamo for sure. Uh so they are also for

the agentic uh session routing.

Uh hugging phase is always there. It's a

simple no server. Then there is like an

MSAR

engine that was recently proposed by

Stanford. They are for like the

multimodel.

Uh so definitely you could explore those

and when you try to basically just to

like give a quick summary uh you we

start with like a baseline

we try to find what model could fit our

use cases.

Um,

so you could pick like uh Deep Seek, you

could pick like don't pick like a

Mistral 7B. I mean, it's not good. Uh,

but yeah, so you pick your model and you

want to like have a smaller memory and

you want to try to fit that bigger model

into smaller memory so that you could

save cost on the GPU cost. So you can do

like all those com quantization

then you can apply all those serving

optimizations by using the right serving

engine under the hood. So that can

really provide you that

throughut that you really want.

And

now something that you can do uh after

going back home pro because we cannot

like actually go over all the material

here uh is definitely reading about some

of the source informations like

different attention mechanisms different

like these engines like try to just read

the different benchmarks which are

present online as well

and then there are a lot of like

in-depth guides or the next phases of it

which is like learning about some KV

eviction strategies. So world is moving

towards having a separate KV cache

engineering domain. So you want to

understand what's going on in there. So

KV cache KV eviction cache compressions

hybrid memories. So there are like lot

of solutions that are happening around

there. So always try to stick to those

foundations or like the fundamentals or

the first principles and try to see like

which solution basically solves what

problem and whether you actually need

that problem to be solved for your use

case

and then there is like distributed LLM

inference which is like a different

painoint altogether. Uh you would

probably need like a two-hour workshop

there as well.

uh to like go over like all the

internals do all the hands-on.

Yes. And this is something we are trying

to propose for the AI engineer New York

session uh which is to like dive deeper

into the advanced sections of the LLM

inference. So this workshop was more for

the like beginner and the intermediate

level. Um so in this form we do have

like a feedback as well plus also the

interest. Um if uh you think like we

need certain improvements on certain

sections definitely give that feedback

as well and if you want to see this

workshop in like New York uh fair you I

mean definitely feel free to enroll your

interest.

Uhhuh.

How is it possible?

Well,

let me just check.

>> Huh?

>> URL works, right? Not the QR code. Okay.

Probably I forgot to link those two

together.

Z

G A five.

Okay, cool. Yes. So if you can give that

feedback let me just okay

that will be fine um and yeah I think we

would like to wrap this workshop then

I'm sure like lot of you would be having

a lot of questions so we can take all

those like offline uh we can meet uh and

we can uh like talk about those

questions.

>> Yeah sure. Uh thank you everyone. Thanks

for joining. Uh I think it was really

meaningful and all of you like came

here. Uh thanks a lot.

>> Yeah. Thanks.
