>> Okay, good morning folks. Thank you for

showing up. I'm Nidhi. I'm a product

person at Google DeepMind. And today

I'll be talking about multimodal

collaborative agents. Typically, these

are agents that work with fuzzy intent

intent when the intent when it's not

clear the user hasn't gotten the right

keywords to specify and when they come

in for a shopping intent, how can you

have the agents still guide the user

towards their goal with high agency

execution, proactive elicitation, and a

lot of hand-holding.

The framework that we'll be discussing

today are grounded in shopping or

commerce because I wanted to show you a

few patterns that are much easier to see

in commerce, but they're quite

applicable in other consumer verticals

as well, finance, education, or whatever

you guys work on.

Um

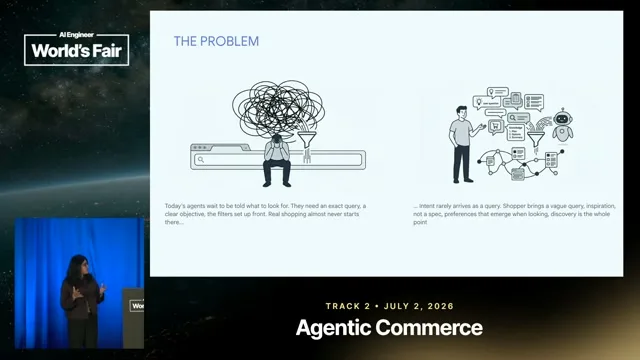

Yeah, so before we even start into the

frameworks, I wanted to discuss about

why this is an existing problem.

Currently, a lot of the agents that we

have act more like a wrapper to the

search bar.

They assume that the user has a

well-defined intent, has the right

keywords, already knows what they're

looking for. And so when they come in,

they just have the right vocabulary to

interact with the agent. However, there

is quite a huge articulation gap. When

the users come in, rarely they have

their intent well formed. Rather, they

kind of have a fuzzy feeling or a vibe

when they are kind of looking to shop.

So,

the agent needs to play quite a huge

role in hand-holding them. They need to

work with the user in first

understanding their preferences or even

eliciting these preferences more

proactively.

And then helping the user

kind of show them different

possibilities of what could be possible

that they can shop

and then eventually move towards

kind of recommendations that work with

these constraints that they have in

mind. So, what we're going to be

discussing is this kind of a flywheel or

a loop that goes from very, very fuzzy

intent all the way towards kind of

achieving the user's goal.

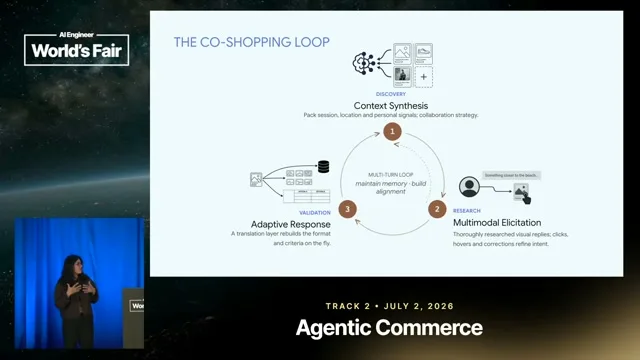

So, this is how the shopping loop looks

like right now. The very first thing

that the agent prepares for when the

user comes in is what we call the

discovery phase.

This is where the where the agent takes

all the different contextual information

that they have about the user. This

could be past conversations, what the

user has specified in their query. It

could be information present in their

personal context, or even the references

that the user have provided. And then

comes up with a collaborative strategy,

and we'll be going to the details of

this, but it comes up with a

collaborative strategy on what more does

the agent need to elicitate back from

the user in order to help get the intent

in a better shape, to get clarity on

what exactly the user is looking for.

And then it moves to the second phase,

which is what we call the research

phase.

Which is again a two-step process. First

is where

it learns what is the best way to

elicitate this preference. So, for

example, a lot of times the text the

text base elicitation may not be the

best way to get the preferences from the

user because sometimes a user don't know

what they're looking for. So, then how

can the agent start being more creative

in terms of elicitating these

preferences? Can they start using some

kind of visual references or visual

visual inspiration boards for grounding

and speaking a common language with the

user? And then the second phase to this

is also coming up going into the

background and doing the heavy lifting

for the user, so taking the burden away

from the user to describing what they

want, and rather going into the

background and doing all the

comparisons, trade-offs,

summarization of all the information

that they're looking for, and coming

back with the right set of potential

options for the user. And then the third

phase, once um

the user and the agent is ready to go

into some kind of a

is ready to go into the last phase,

which is where um

the agent is ready to give out a

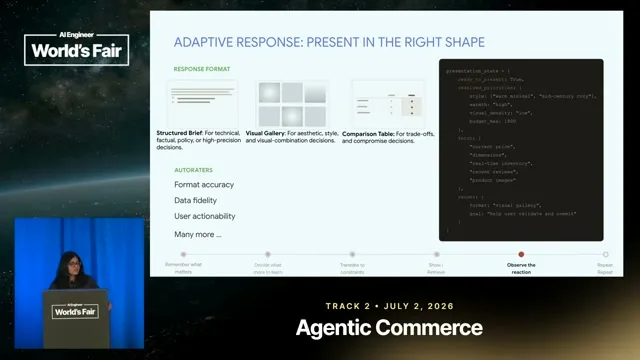

response. This is where the agent needs

to start adapting the response in a way

that is most useful for the user. So,

typically a lot of systems fail here

where they just give out a text-heavy

response. What the agent should rather

be doing is adapting to the query that

the user had in mind. So, should it be

using um some kind of a bulleted list?

Should it be using comparison tables?

Should it be using um visual boards? So,

this is where the there's adaptive

response happening as well, where the uh

agent starts to develop uh more more of

a uh smarter uh presentation skills uh

for the user to really find the answer

that they're looking for. So, we'll be

diving into all these topics as I uh

kind of work through the presentation.

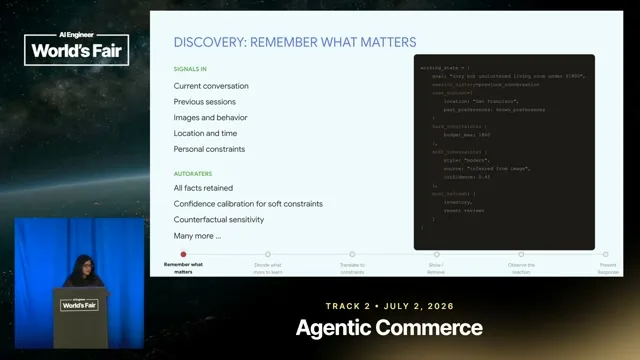

So, first and foremost, we're looking at

discovery. Like I was mentioning, this

is where uh the the the agent needs to

remember what exactly matters.

Um you the agent starts to look at the

context across a bunch of different

signals. It starts to look at past

conversations. It looks at some of the

reference images or reference links that

the user might have provided. It also

starts to look at personal context and

starts to build out a working state. So,

if you look at the sample code that we

have here, like there is there is a goal

uh one of the let's let's work with this

query where the user is trying to redo

their living room with a certain budget

in mind. And some of the um some of the

things that the agent develops as part

of the working state is the session

history. It has a user context. It also

kind of extracts out the hard constraint

that the user might have provided in the

query.

But, things start getting getting

interesting when we come to the softer

constraints.

So, this is where the user may not be

able to describe what they're looking

for and may might have provided like a

reference image on, you know, an

inspiration that they had in mind or

some kind of a layout design that they

really liked and is trying to get to the

agent in terms of uh this is what speaks

more to me. So, this is where the agent

starts to be more proactive and pulls

out some of the salient signals from the

from the reference images and starts to

develop a mental model of what the user

might really be looking to get at. So,

here the user is uh so the agent has

specified uh has identified that maybe

the style that is working out well for

them is of a certain kind. It also uh is

also is also starting to work towards a

confidence score on like how confident

it is in terms of pulling out some of

this information present in the

multimodal inputs provided. And then the

last thing uh that happens as part of

developing this working state is also

figuring out what are the variables that

the agent needs to pull out almost in

real time because these variables

uh this variables do affect how the

results will be displayed back to the

user. This could be variables that need

to be refreshed in real time like uh

inventory because if if what you're

providing back to the user is stale

information, then it's kind of a moot

point. So, these are the uh these are

the variables that you want to refresh

in real time and is and becomes a part

of the agent's working state.

Um

few ways that you can evaluate this

state uh the way we have developed our

auto raters, we we do make sure that all

facts are retained meaning that whatever

was mentioned in the part of uh whatever

was mentioned in part of the context is

properly represented in the working

state. We also capture if the confidence

collaboration was within a certain error

bound because uh the agent needs to be

able to confidently pull out these

signals from the input. We also focus on

getting out um the counterfactual

sensitivity uh counterfactual

sensitivity. So, we do this by flipping

some parts of the queries and making

sure that when the query changes, the

underlying constraints pulled out by the

agent the those also change and the ones

that are not relevant stay the same. So,

we kind of want to measure the

sensitivity both ways.

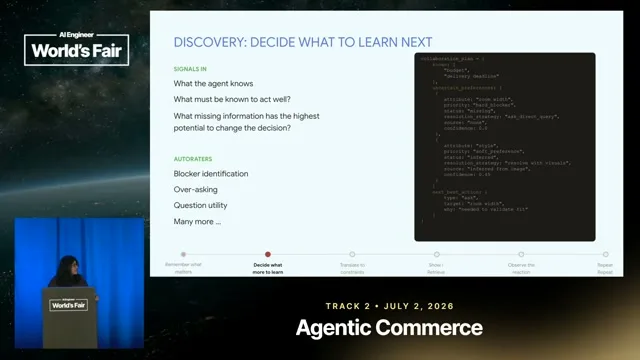

And then the second part that happens in

the discovery phase as well is once the

agent knows what they have what they

already know about the user what more do

they need to know about the user. So

what we call this what we call this is

kind of discovering the intent gap.

There's a lot of times that there are a

lot of unknown variables before the

agent can provide the best answer and

amongst all these unknown variables the

agent doesn't need to go and find all

the unknown variables up front. So what

I mean by that is in this unknown in in

our working example some of the unknown

variables that the agent said they need

to find out more about is maybe knowing

what the room width would be for the

user or even kind of working on

improving the confidence for the style

before they can recommend back the

results. Now

once these unknown variables are figured

out the agent also needs to work on a

collaborative strategy compare all the

different moves possible and then figure

out what is that one unknown variable

that it should prioritize such that it

has the maximal information gain at that

point. So in this case

I mean one could argue that maybe

finding out the room width is the best

next move for the agent because if the

products that the the agent is

recommending doesn't fit into the room

then again it's a moot point and that is

one variable that is going to

meaningfully change the

the direction of the conversation and

that's what the agent works on in this

step kind of figuring out what's the

best next thing to ask to the user and

what's why is that the best next thing

to ask as well. Once it has okay so I'll

go ahead into the auto data section on

like why how do we evaluate this

collaborative strategy we first focus on

making sure that the agent is able to

identify all the different blockers that

are needed to be answered before the

agent can come back with meaningful

responses. We also work towards making

sure that the agent is um

optimal in trying to get some of these

responses so we also don't want to have

the agent constantly going into the loop

and continually continuously asking

these questions so over asking is

definitely something we flag. We also

work on question utility. So, again, how

optimally is the question being asked?

Is the question indeed useful to get the

right or elicit the right preference

from the user? And many more.

Okay.

Moving on. The The second part that I

was mentioning is the multimodal

elicitation. This is where the research

phase happens.

So, play along, but like let's say the

the agent has asked about the room

width, the user has provided the

response, and then the agent goes to the

next step, which is where the agent is

asking about the next constraint that it

needs to know about is what was the

style preference of the user.

Now, the first first thing that the

agent needs to do is kind of form this

temporary bridge between the constraint

itself and how that maps back to the

the product catalog and the ontology in

your knowledge knowledge database. And

this is going to be important because

when you start retrieving these

products, you want to have a way to map

these constraints back to your knowledge

base. So, this almost happens in real

time where we map the known constraint

or the constraint that the agent is

exploring back to the knowledge

database. We also work towards um

figuring out We also work on like the

agent knowing what is the best way to

get the response for this constraint as

well. So, in this case, the agent has

decided that maybe since this is this

kind of a subjective constraint, the

textual the actual elicitation is not

the best way to do this. So, one of the

ways that the agent thinks this could

this could be elicited back from the

user is using some kind of a visual

preference

board.

So, the agent then goes back to

determining what is the best form of

options to show to the user. This could

be a combination of figuring out from

the existing constraints, the past

conversation, and then the temporary

mapping that you've created from the

constraints back to your product

ontology. So, in this case, the the

agent thinks that maybe coming up with a

few styles that are most similar to what

the user had provided as reference image

could be a good way to start thinking or

guiding the user towards a common

language on what could be uh something

that the user is interested in.

And then the the then the agent also

goes into kind of um observing the space

of what kind of reactions the user is

giving. So, it could start looking at

these micro signals of if there was a

hover or a click in a certain direction

and starts updating its its confidence

model on what kind of signals uh what

kind of signals can be used to im-

improve the confidence in like what

could be the style preference for the

user.

Um some of the auto raters we use here,

we do look at how efficient the how

efficient the agent is in discovering

hidden preferences. So, typically, we

would use a user simulator, feed it with

some constraints, and then we'll see how

how efficient the agent was in kind of

eliciting some of these constraints. We

also focus on turn efficiency. So,

how efficient was the user in how many

turns did it take for the user to be

able to to be able to uncover all these

hidden preferences. Ideally, we don't

want the user to go into this loop and

keep asking the same questions again and

again and again. Or also, we don't want

to go into the loop of asking some

um some questions which may not give you

the best uh which may not give you the

best information required to proceed the

conversation. And then we also look at

forma- format selection accuracy. So, we

typically also look for if the agent is

asking the right right question in the

right format. So, for example, if the if

the question was something that was

easily statable, the right format could

be a textual elicitation. But if if this

was more of a

fuzzy question where the user is clearly

having an articulation gap and is not

able to describe the preference, maybe

the best way to do this is speak a

common language and come up with some

visual anchor points for the user to say

what speaks more to them.

Um

Yeah, so then the last step in this

process, once the So, to recap like

basically the Now the agent knows

exactly what they what the user is

looking for. The agent has identified a

collaboration strategy, has figured out

all the preferences for the user, and

knows what is going to be most optimal

in terms of um the different priorities

for the user. The last step in this

process is to also use the model

intelligence to figure out what is the

best way to provide this response back

to the user. So, in this working

example, we found out that the agent

knows what the style preference is, has

figured out that the user is looking to

buy products under a certain budget, and

knows what are the different dimensions

along which it needs to find uh these

products for because through the

conversation they figured out some of

the different um

different metadata information that is

going to be relevant to surface when

they're giving out this product

information back to the user.

So, the one one important step that

happens at this this stage is figuring

out what's the best way to surface back

this response. So, for example, like if

the user was looking for a particular

policy or review information about a

particular product, maybe the best way

to do this is to go give out a summary

or a bulleted list. But if the if the

user was looking more towards comparing

two different products, maybe the best

response is to give out a trade-off

table or a comparison table across the

different axis that the user cares

about.

Um and in case that in our example where

the user was looking more towards kind

of style inspiration or ideas on how

they can kind of redo their room, then

maybe the best way is to give out some

visual references and product

inspiration photos on like how What are

the different options and possibilities

uh for the user to uncover. So,

some other ways that we focus on

evaluating uh this stage is focusing on

the format accuracy. So, we want to make

sure that the response format is kind of

optimal for the user query so that they

they find out exactly what they're

looking for.

Uh ideally the information that they're

looking for should not be buried in the

response, but should be easy for the

user to spot so they can come into the

next stage in the intent journey, which

is to basically buy the product. We also

look at data fidelity, which is to make

sure that the model is not hallucinating

and it's really capturing the

information in the correct format in the

you know, the the information is just

accurate and is captured across

the response. We also look at user

actionability. So, this is ensuring that

the response format is such that the

user is very confident and and commits

to the next action, which is like I

said, the action to purchase the

product.

So,

just to recap so far, what we have is um

you want to design the product. Um

you want to you want to design the

product such that you're prepared to

accept vibes, like I say. So, that is to

say that users will come with fuzzy

intent. Users will not have a

well-defined goal. So, you want to make

sure that your system is able to work

through queries that are not clean.

Um the second takeaway is you want to

focus on showing and asking rather than

always asking with textual textual with

textual elicitations. Again, like

visuals and comparisons do reveal

preferences much much faster. It allows

you the agent and the user to speak a

common language.

Third one I would say is shape the

answer. So, do focus on making sure that

the presentation format is ideal for the

user being able to find the right

information.

Um the way you have the model response

structure is also very much part of the

intelligence. And then the last one is

make sure that you grade the loop. You

have the right auto rater set up on

every step of the process. Um and

honestly, developing these auto raters

is a

is is almost like an evolving system. It

starts very simple, but as and when you

start the the system starts evolving,

you want the auto raters to kind of

gradually grow with your system and

start

um

yeah, it which just gradually grow with

your system.

So, that's all I had. Um

I can take a few questions, but

hopefully the learnings we shared are

useful for whatever you folks are

building.

Yeah.

Yeah.

Yeah.

Yeah, great question. So, the question

is about what should the how should the

ontology be structured on the merchant

side so that it's fair both for the

agent and the merchants. So, yes, we do

take a lot of advantage on the domain

expertise of the merchant on as to what

they're trying to sell and like we do

work towards creating So, you remember

how I was mentioning about the bridge

between the constraints that the user

might have specified and then what the

agent

kind of understands. That is where we do

expect a lot of intelligence to flow

from the merchant side where the

ontology on how that constraint could

map to the different metadata that the

agent has. Sorry, the that the merchant

has maps in. So, yes, we do partner a

lot and then there's also like the UCP

stuff that we launched recently which

allows all the merchants to kind of

start speaking the common language with

the agent as well.

>> Yeah, so ideally, I mean, honestly right

now we focus on making sure all of this

flows back to the agent and the agent

makes the decisions because you want to

build like a horizontal common layer

across all the different merchants. So,

and also like it should be a seamless

experience for the for the user who's

interacting with our apps. So, right now

the response format is very much part of

the agent's intelligence. It is not

something that the merchant gets to

decide.

Yeah.

Yes.

>> I'm just curious your opinion what

happens when your user is not a user

anymore, it's an agent.

>> That's a great question.

We're in the early stages of building

this out, but I think I mean there could

be a case where um

Yeah.

Yeah, yeah, exactly. So, yeah, I would I

would expect like an MCP to be the

interface between the two for sure.

Honestly, we haven't gotten to a point

where we have agents interacting with

our agents just yet. Also, like what

we've realized at least from our user

studies is

users really like to be more involved in

the process of choosing or even

exploring the different possibilities.

So, during the upper funnel journeys

where users is looking more towards

discovery, inspiration, that is where

they would rather be interacting with

the system than with their agent. I

think where the agent typically comes in

or even where

what we've heard is like the was the

lower end of the journey where they're

just looking to compare or negotiate or

compare prices across different

merchants, but very much up there in the

funnel, it's the users who kind of

interact more with our systems. So,

yeah.

Yeah, I think

yeah, I can take questions outside, but

thank you folks for coming.

>> [music]
