>> My name is Bo. I'm going to be here

presenting real-time voice agents with

Frontier Intelligence. Effectively,

going to be talking a little bit about

how we at Xnor.ai architected our voice

agent harness to get real-time voice

with the Frontier level of intelligence

that we need.

Okay. So, before I start,

I think I wanted to kind of draw some

parallels about

why we decided to go with cascaded voice

agents and especially kind of

comparing that to self-driving cars

which I was working in before. So, to

me, cascaded voice agents makes a lot of

sense when you view it in lens of kind

of breaking it down into perception

which is

for self-driving cars, it's you know,

the bounding boxes, the camera, the

lidar.

For voice, it's going to be the

transcription. Basically, effectively

turning these like signals from the real

world into

elements of data that the language model

or whatever brain you're working on

can process.

Second one is the planning step which is

pretty straightforward.

This is where the language model

will take in the outputs from the

perception stage and produce the outputs

that you want to produce out back and

out into the real world.

And finally, there's the controls layer

where

on self-driving, you'd be taking the

trajectory that the planner would output

and kind of turn it into the real

controls to kind of build like drive the

car. Here, we're turning the text into

audio that we use to express our voice

agent's thoughts.

And um

yeah, so here I'm going to be like going

to diving into each one of these

elements and we've made a few kind of

interesting tricks on each of these

areas to

improve the speed of our voice agents

without sacrificing the intelligence.

So, the first one is going to be uh the

transcriber layer. So, we came up with

this concept called like the streaming

speculative transcriber where

effectively we are layering a fast

streaming transcriber like Flux on top

of or kind of below a

uh scribe V2 or a accurate batch

transcription which kind of takes in

more context. It's a little bit slower,

but it will give you more accurate

detections.

So, we're going to walk through a

scenario. So, in this in this case the

agent just asked, you know, providing

can you provide your name and date of

birth and the user is going to say this

and we'll see how that plays out um

timing-wise. So, first we're going to

get, you know, the short detection. Um

we'll get it from we'll get it from the

streaming layer. The accurate

layer uh the corrective layer is not

going to fire because it's the same

text.

Um we're going to get some more

streaming text detections and in this

case the corrective layer is actually

canceled because we got new um new text.

So, you know, more context, more audio

is going to beat the old accurate one.

And here's where kind of the first

correction comes in. So, because the

scribe V2 layer understands, you know,

the the context of the question, it's

able to understand that this is talking

about name and this is a date of birth.

Then a couple more detections, these are

just punctuation, we don't care.

And so, in the end we kind of release

this text over to the agent.

And moving on um to the language model

layer.

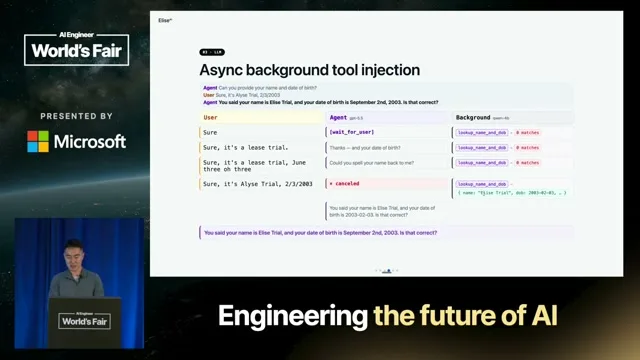

So, here since we're kind of using these

slow but intelligent LLMs, we really

want to reduce the number of round trips

and the thing that causes us to do a lot

of inferences is tool calling. So, one

way to get rid of that is by having

background agents do the tool calling

for you and kind of

um push the tools back into the context

of the main agent so that it thinks it

made the tool call, but

um

but it it it really didn't.

So,

uh so, we remember from like detections

from before.

So, well, what happened is each one of

these detections is going to trigger a

um an early

kind of generation of the agent and we

but we won't actually

emit this out until we're confirming

that the user has finished speaking. So,

in this case, the user says, "Sure." The

agent kind of knows that the user is

about to say something else. Our

background tool calling here, which is

going to be helping us find figure out

the name and the date of birth from the

user detection, is not firing. So,

nothing much there.

Um the next instant detection comes in.

It says that,

you know, still not really a name. Um

our agent kind of plays along and

continues there.

Now, kind of a more more context come

comes back. The agent kind of feels like

there should be a name. It's going to

ask to spell it out because it's

probably thinking there's some

transcription error here. Still no name

or date of birth.

And then finally, this you remember this

is kind of our corrected um final

instant detection from the transcriber

from the Scribe V2.

Um here, our eager kind of agent

generation that was made without any

tool calls is going to get canceled

because the background agent finally is

able to find the name and date of birth

it's looking for. So, it's going to

retrigger and now the the agent actually

has the context it needs.

Um and you see here, it's kind of we're

doing it the tool call here is a little

bit um um

some intelligence there. We're going to

be like, you know, correcting

mis-transcriptions of name, and doing

some like phonetic matching here.

Um and yeah, and then we'll kind of

once we've understood that this is the

end of the user utterance, we'll kind of

emit it out. So, pretty standard.

Okay, and then the next layer here is

going to be text-to-speech. So, with

text-to-speech

the goal is to kind of take what the

agent said, and the agent's going to be

emitting this in a streaming fashion.

So, we're going to need to

um produce audio as quickly as possible.

And ideally, what you can do is before

the agent has even finished generating

the full text you can have the audio

play, so it's kind of hiding the latency

of finishing the generation.

So,

um I'm going to kind of play the

streaming um

the stream the streaming uh agent output

now. So, starts with you.

And yeah, actually before I uh further,

there's this new concept that we're

introducing here called the prefix

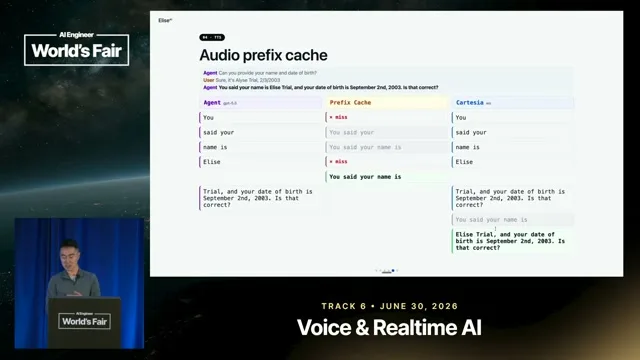

cache. So, the prefix cache is going to

be looking at the

um agent stream, and seeing if we

already have generated audio for that

sequence of words um from like a prior

generation, or maybe like the same

generation

um in this

uh in this call as as well.

So, um it sees the word you. Uh we for

this prefix cache, we're going to be,

you know, we don't want to like

immediately hit on every single word.

We're going to be waiting for a little

bit more words.

Um so, after three words, the prefix

cache gets our first hit.

And um over here on the right, this is

kind of our text-to-speech standard

provider, you know, Cartesia is a

text-to-speech engine with web socket

support. So, we're we're piping the

agent through the the cache, and also

piping it through web socket.

Um more tokens come in, more cache, more

sending through web socket. Not much to

say here.

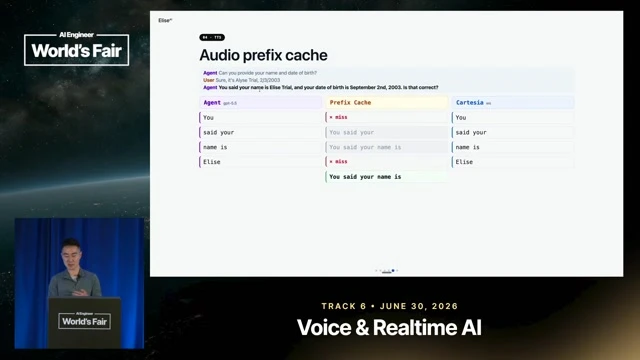

And okay, so now we get our first uh

kind of first unique thing, which is we

found the token that actually causes a

cache miss. And it makes sense. If we're

kind of caching previous generations,

um you said your name is is a pretty

common thing, but once you we add in the

name, suddenly we're that's that's going

to result in the cache miss.

At this point, we're actually going to

yield out our cached audio. So, you said

your name is is going to be

um emitted as the rest of the streaming

text is coming back. So, at this point,

the user hears the agent and user

doesn't really know what's going on.

They just looks like really fast

response times to them.

Um and now the kind of remaining text

flows through.

And at this point, we've already emitted

from the cache. The cache has done its

job. Um the rest we can kind of throw

into Cartesia.

And here's kind of the trick where

Cartesia has seen the entire transcript

up to this point. It

to to Cartesia, like it doesn't know

about the existence of this prefix

cache. It's just going to generate this

full sentence with, you know, standard

natural prosody.

But, what we do is when the generation

comes back, since we've already played

the audio here, we can actually suppress

the audio from Cartesia here and just

play out the remaining stuff. So,

the user, there's might be a tiny bit of

a hiccup. You know, I'll play some audio

later and you'll know that you probably

won't be able to notice.

And effectively, we're kind of taking

this and

or taking this part and just emitting it

directly after this audio has finished

playing. So, it looks seamless to the

user.

And yeah, so I guess at this point kind

of this is a lot of technical details.

I'll I mean the best way is just kind of

play a call and see

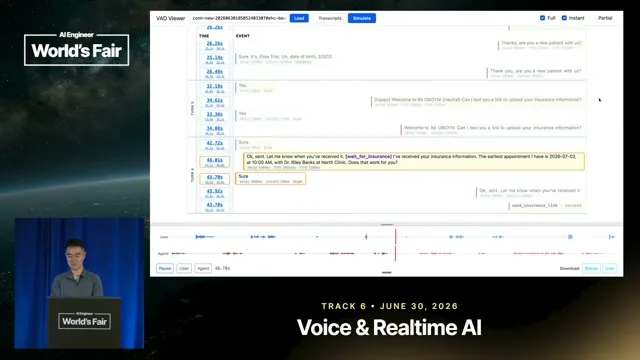

see this in action. So here I recorded a

call and let's just hear what happens.

>> This is Bo OBGYN Elise speaking.

>> Hi, I think I might be pregnant and I

want to schedule an ultrasound to

confirm.

>> That's exciting news. Can you provide

your name and date of birth?

>> Sure, it's Elise Trial.

Date of birth

2303.

>> Thank you. Are you a new patient with

us?

>> Yes.

>> Welcome to Bo OBGYN. Can I text you a

link to upload your insurance

information?

>> Sure.

>> Okay, sent. Let me know when you've

received it.

I've received your insurance

information. The earliest appointment I

have is Thursday, July 2nd at 10:00 a.m.

>> Actually, give me a second.

Let me check my calendar.

>> Sure, take your time.

>> Um do you have something for next week?

>> For next week, I can offer an ultrasound

with Dr. Avery Stone at North Clinic on

Tuesday, July 7th at 2:00 p.m. or 3:00

p.m. Do either of those work for you?

>> Yeah, 2:00 p.m. works.

>> Great. Your appointment has been booked.

We look forward to seeing you then.

>> Thanks. Bye-bye.

>> All right. Yeah, that's pretty much it.

Um

Yeah, you can kind of see our

all this like uh

streaming

and you know, a lot of things are

happening in the background and and you

know, this is what really makes like

voice agents interesting. And um there's

a lot of effort that can be done in the

harness to really kind of get a um

natural conversation, which is what

we're after.

Uh okay. Yeah, so I guess briefly, you

know, in the last part, I want to just

talk a little bit about Elise. So I

think Elise, you know, our headquarters

are in New York and kind of we're trying

to expand our presence here in the Bay

Area. Um we I think it's maybe like a

different style of company that I think

people are

like uh think of when they think about

AI startups in San Francisco. Where

we're actually very focused on um

just like helping people and helping

people where they need it, like kind of

the life's most critical areas. We work

on housing, health care and uh we're

doing really well and you know, here's

there's a link here to

um you kind of join our team and there's

going to we're going to be uh posting a

lot on Twitter, so you can follow us at

EliseAI as well.

Um yeah, that's that's it.

>> [applause]
