AI Engineer Summit 2023
Supabase Vector: The Postgres Vector database
Read the talk
Supabase Vector: Putting embeddings to work in Postgres
A community contribution helped turn Supabase’s broken documentation search into Clippy. The broader story is how vector search combines with Postgres indexes, partitions, access rules, and operational data.
From a talk by Paul Copplestone

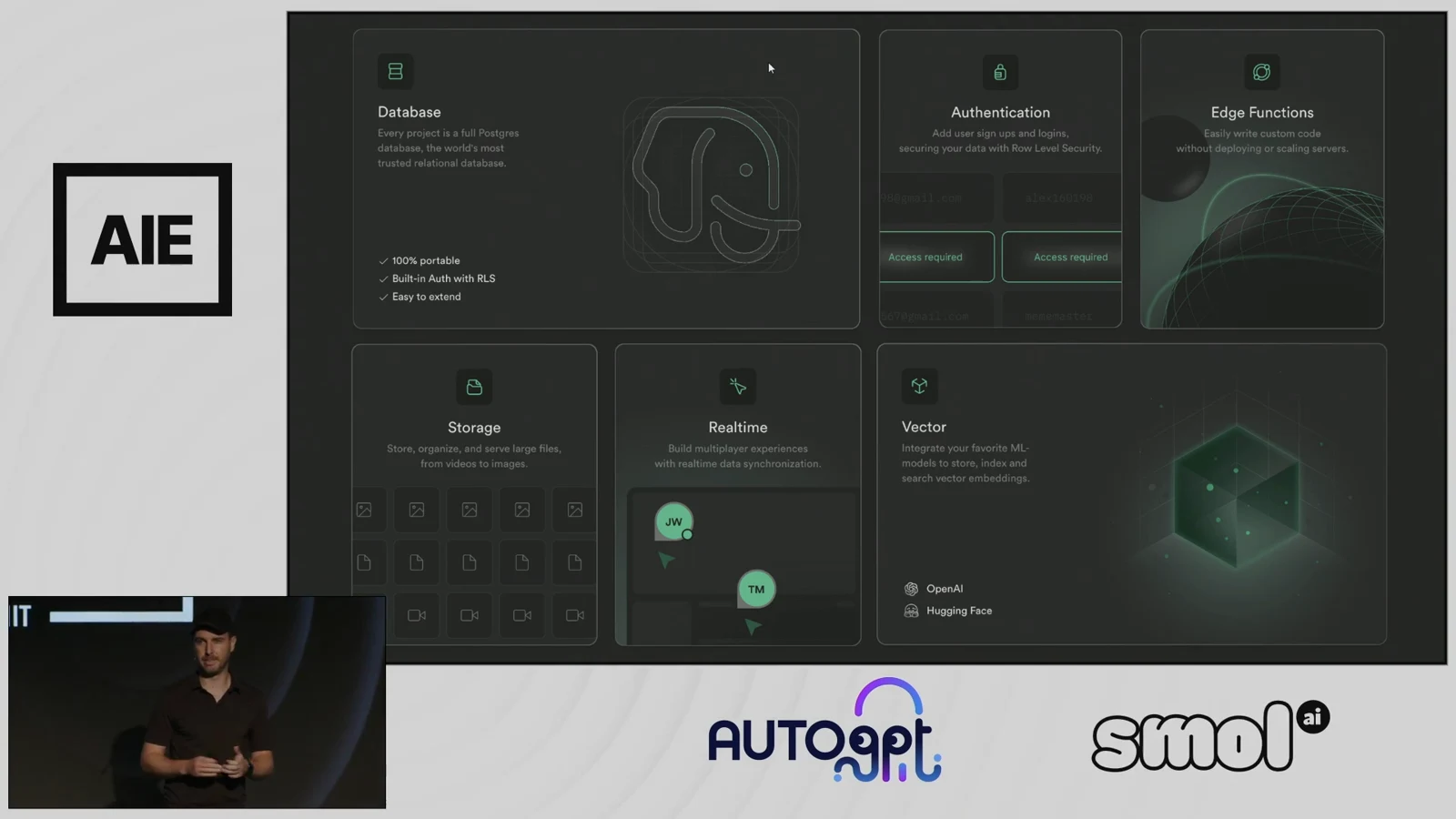

Vector search inside the application database
An application that stores users, files, and embeddings needs more than a similarity-search endpoint. It also needs identities, storage metadata, and access rules. Paul Copplestone begins with the backend around those requirements: each Supabase project receives a full Postgres database, and users managed through its authentication service live inside that database.
The surrounding services connect to the same foundation:
- Compute. Deno-powered edge functions run application logic and can be triggered from the database.
- File storage. Large files live outside Postgres, but their directory metadata lives inside it, where access rules can use it.
Realtime adds subscriptions to database changes and live interactions such as cursor movements. Embedding storage follows through pgvector, a Postgres extension. Vector search becomes another capability of the application database, alongside the services an application already needs.
This also reflects Supabase’s approach to open source. Copplestone describes operating openly since 2020, using MIT, Apache 2, and Postgres licenses, and supporting existing communities. pgvector was an existing project to adopt and contribute to, rather than a component Supabase needed to invent.
Suggest correction
This note stays in this page until you copy or download it. Nothing is submitted; reloading clears the draft.
A contribution becomes documentation search
The adoption story starts with an email from Greg asking what it would take to add pgvector to Supabase. He had already done the implementation work and supplied a pull request. After a call, Copplestone followed up the next day: the extension was merged and expected to reach production that week. The same message raised an immediate application problem—Supabase’s documentation search was broken—and asked whether Greg wanted to help.
Roughly two weeks later, Supabase released Clippy, a deliberate nod to Microsoft’s assistant. Copplestone recalls that the team did not know of another documentation interface doing this at the time. They then packaged the example as a reusable template, so other developers could build similar search interfaces for their own documentation. The contribution had become both a working feature and a starting point for other applications.
Suggest correction
This note stays in this page until you copy or download it. Nothing is submitted; reloading clears the draft.
Adoption and the contributor feedback loop
Copplestone points to Mozilla’s MDN implementation as a prominent example of this documentation-search approach spreading. Supabase’s growth chart covers newly launched databases on the hosted platform, excluding independently operated open-source deployments. He describes pgvector as one tailwind behind that growth, with Supabase fitting into the Vercel, Netlify, and Jamstack ecosystem. At the time of the talk, Copplestone reported about 12,000 new hosted databases per week and estimated that 10–15% used pgvector. Those figures describe database creation, rather than a count of distinct AI applications.
One application reportedly reached one million users in ten days after taking three days to build. For Copplestone, this was a surprisingly literal expression of the ambition to build over a weekend and then scale to millions.
The conference application itself used Supabase. Greg, meanwhile, had joined the company and led the preceding day’s workshop, completing the arc from community contribution to product development. Copplestone thanks him to applause before introducing the story’s speed bump: a public challenge to pgvector’s performance.
Suggest correction
This note stays in this page until you copy or download it. Nothing is submitted; reloading clears the draft.
An index change alters the benchmark
A tweet cited in the talk claimed that pgvector was 20 times slower than Qdrant and 18% worse at finding relevant documents. The displayed throughput chart measured queries per second, with higher values better, and its Postgres entry used IVFFlat. The talk does not establish the workload or what the critic’s 18% figure measures.
Copplestone first separates the extension’s authorship from Supabase’s involvement. Andrew Kane developed pgvector years before Supabase adopted it; Supabase was a contributor. The response to the criticism was further contribution: Kane, Supabase, AWS, and other collaborators worked on adding HNSW. The talk describes roughly one month of development.
The replacement chart uses Postgres HNSW, drawing cheers from the audience. Copplestone immediately qualifies the comparison: he is not trying to attack Qdrant, and isolated benchmarks do not establish a universal database ranking. Within this comparison, however, changing the index improved both throughput and reported accuracy. In the follow-up comparison, Postgres HNSW and Qdrant both had a reported accuracy value of 0.99. The presentation does not define that accuracy measure.
Suggest correction
This note stays in this page until you copy or download it. Nothing is submitted; reloading clears the draft.

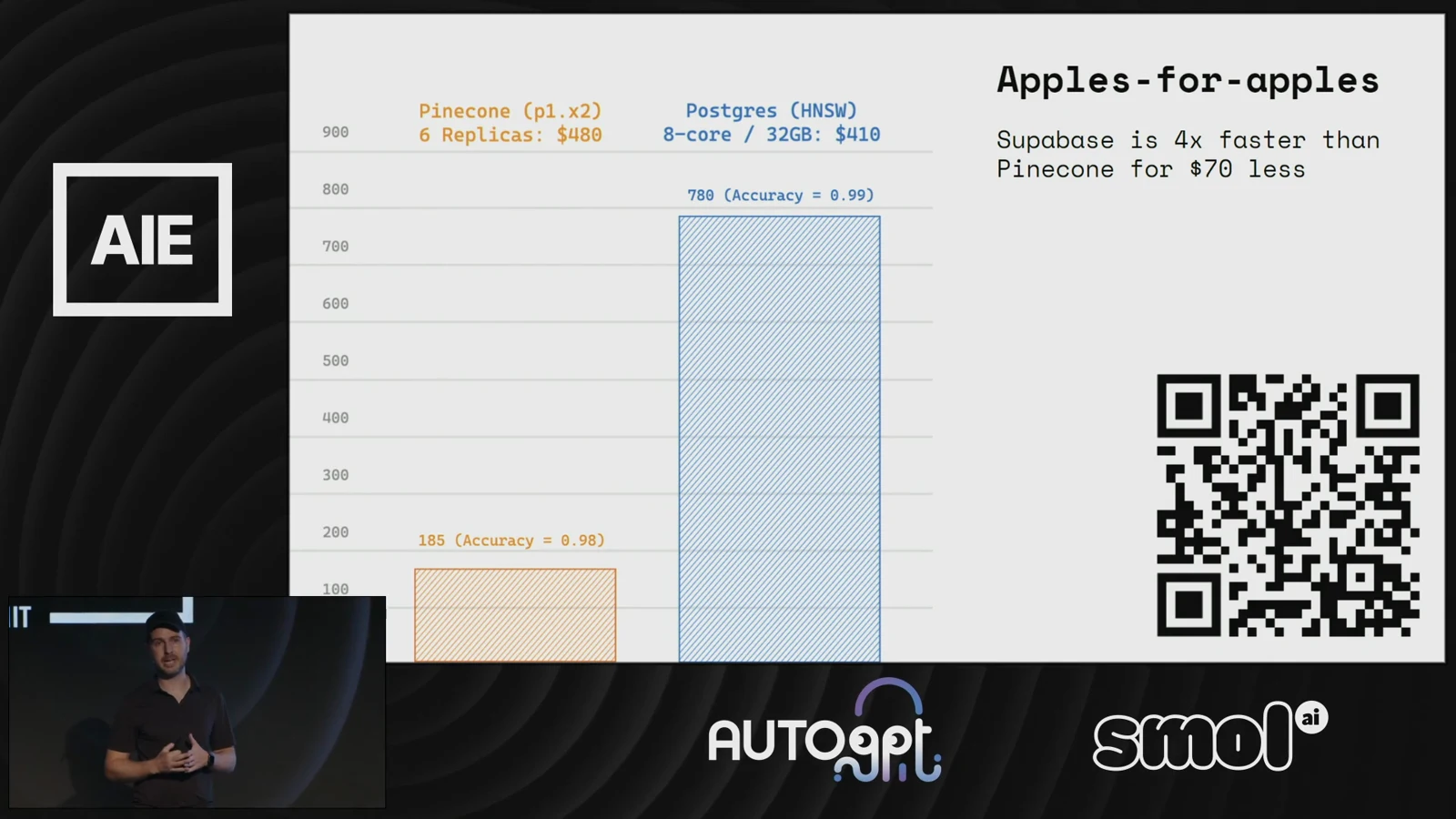

Compare performance under a stated budget
The next comparison addresses an obvious possibility: perhaps better results simply came from spending more on compute. Supabase’s October 2023 pgvector–Pinecone study supplies the workload behind this part of the talk. The study uses one million 1,536-dimensional dbpedia embeddings, inner-product distance, and clients in the same region.
Copplestone notes the difficulty of benchmarking Pinecone and assessing its accuracy. The chart compares six Pinecone p1.x2 replicas at $480 with an eight-core, 32 GB Postgres HNSW instance at $410. For that workload, the slide reports 780 queries per second at accuracy 0.99 for Postgres HNSW, versus 185 queries per second at accuracy 0.98 for Pinecone.
This approximately matches spending; it does not establish identical hardware or resource allocations. The chart makes a specific cost-and-performance argument under the study’s workload. Its prices and results belong to that historical vendor comparison, rather than a current purchasing recommendation.
Suggest correction
This note stays in this page until you copy or download it. Nothing is submitted; reloading clears the draft.
From trash photos to good and bad cats
The architectural argument becomes more concrete through a conversation with Joseph, Roboflow’s CEO. An application let users photograph trash in San Francisco, upload the images into an embedding store, and track trends across the city. Like the PaintWTF example discussed earlier at the conference, it faced unwanted, potentially unsafe uploads. Those images consume storage, add work to the search index, and may become visible to users.
Copplestone’s small Postgres proof of concept used partitions to separate wanted and unwanted records. Trash makes for a dull demonstration, so he substitutes cats: good cats and bad cats. Each uploaded embedding is compared with a canonical image, his space cat. The proposed rule sends scores greater than 0.8 to good cats and everything else to bad cats.
The comparison lives in a Postgres function named is_cat. Copplestone generates an embedding for the space-cat image and places that reference vector inside the function. An incoming embedding becomes the argument; a floating-point similarity becomes the result. Despite its name, is_cat returns a score, not a Boolean. The single reference image makes the storage mechanism easy to follow, without establishing a reliable moderation classifier.
Suggest correction
This note stays in this page until you copy or download it. Nothing is submitted; reloading clears the draft.
Store similarity when a record arrives
The initial table stores three useful pieces of information: the image embedding, the image URL, and the computed similarity. A trigger attaches the computation to insertion, so each incoming row receives its score as part of being stored. This first step concerns an ordinary table; partition routing comes afterward.

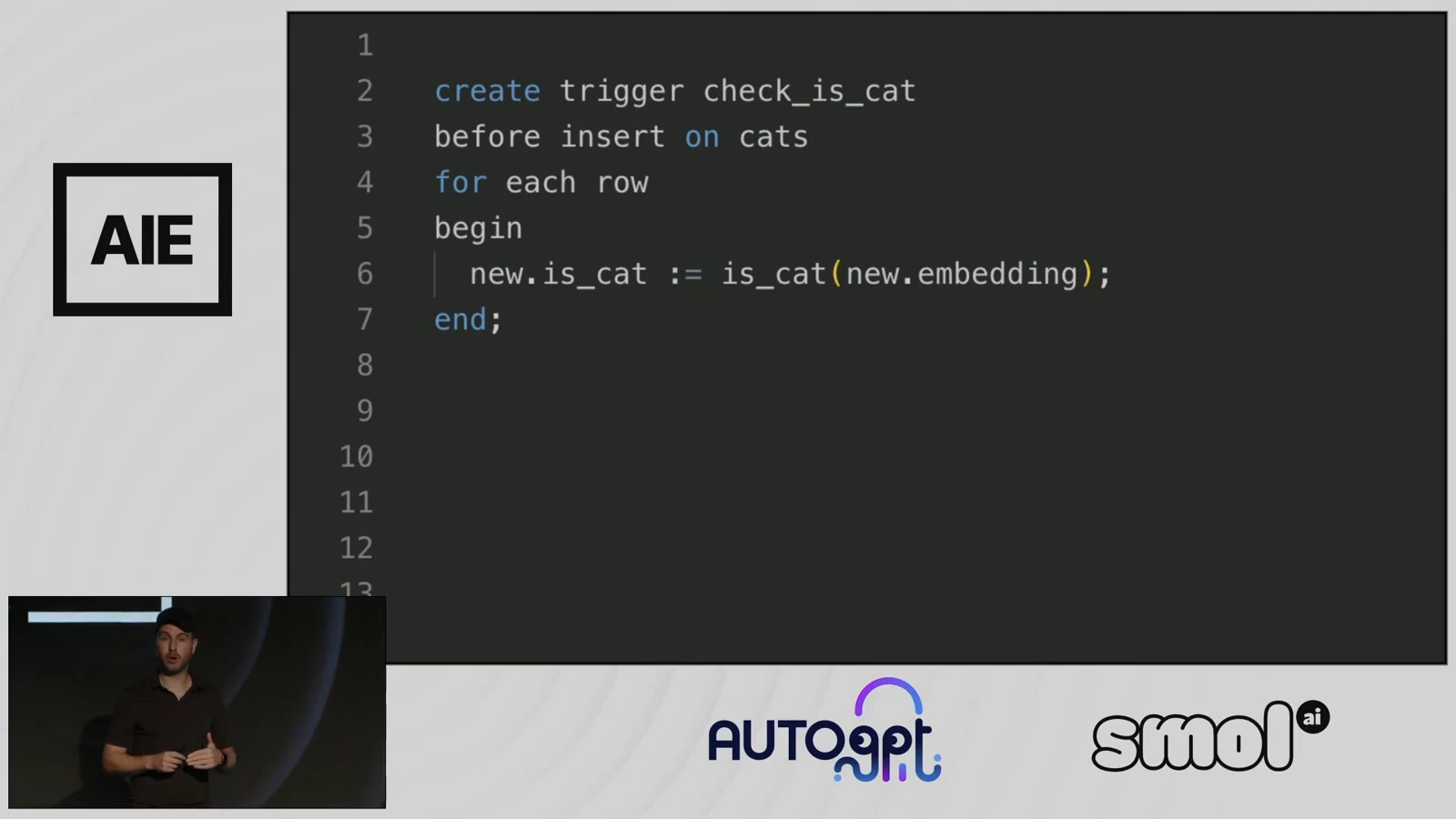

The slide calls the trigger check_is_cat and the table cats. It sketches assigning is_cat(new.embedding) to new.is_cat before insertion. Its inline trigger body is abbreviated: PostgreSQL expresses this operation through a separate trigger function.
For an unpartitioned table named cat_uploads, with columns embedding and similarity and an existing is_cat comparison function, the pattern can be expressed in SQL:
sql
CREATE FUNCTION set_cat_similarity()
RETURNS trigger
LANGUAGE plpgsql
AS $$
BEGIN
NEW.similarity := is_cat(NEW.embedding);
RETURN NEW;
END;
$$;
CREATE TRIGGER score_cat_before_insert
BEFORE INSERT ON cat_uploads
FOR EACH ROW
EXECUTE FUNCTION set_cat_similarity();
NEW represents the row about to be inserted. Assigning its similarity field adds the comparison result to that row before storage. After a batch of uploads, the result is a table of embeddings and image URLs with their corresponding scores—the information needed to separate the records.
Suggest correction
This note stays in this page until you copy or download it. Nothing is submitted; reloading clears the draft.
Index accepted records and discard rejected records together
Partitions turn the stored scores into an operational distinction. Each partition can have its own index and storage lifecycle, allowing the proposed layout to treat the two groups differently:
| Operation | Good cats: accepted | Bad cats: rejected |
|---|---|---|
| Vector indexing | Create and maintain a search index | Leave these records unindexed |
| Storage | Keep accepted records grouped together | Keep rejected records separately until cleanup |
| Cleanup | Retain searchable records | Drop and recreate the rejected partition |
Rejected uploads still consume storage until cleanup. The useful separation is that they need not enlarge the accepted records’ vector index, and they can be removed together.
The later table definition partitions by range on the stored similarity column, named is_cat in that example. The good-cats partition has bounds from 0.8 to 1; a default partition receives everything outside that range. A small amount of SQL expresses the layout, but its exact bounds determine where records land.
Two PostgreSQL 16 partitioning rules matter when implementing this design:
- Range boundaries. Lower bounds are inclusive and upper bounds exclusive. The range
[0.8, 1)accepts exactly0.8but sends exactly1to the default partition. This differs from the earlier spoken greater-than rule, so the intended treatment of both boundary scores needs an explicit decision. - Routing order. A
BEFORE ROW INSERTtrigger cannot change the destination partition. Calculate the similarity key before submitting the row to the partitioned table; the earlier trigger pattern for an unpartitioned table cannot simply be used to redirect incoming rows.
The demonstration leaves open whether this is the best solution to the original image problem. Its appeal is that the necessary primitives—functions, triggers, partitions, independent indexes, and bulk cleanup—are already available in Postgres. The vector operation can participate in ordinary database operations.
Suggest correction
This note stays in this page until you copy or download it. Nothing is submitted; reloading clears the draft.
Access control and fewer round trips
The broader argument rests on Postgres’s accumulated engineering and extensibility. The talk invokes roughly three decades of database development: an AI application can reuse those primitives instead of building them around a separate embedding store. pgvector itself illustrates the extension mechanism. The talk recalls integrating pgvector into Supabase in approximately two days. It could become a database capability without first becoming part of Postgres core.
For retrieval-augmented generation over user data, row-level security supplies another useful primitive. Declarative policies on database tables can express which rows a user may access, separating one user’s records from another’s. For roles subject to those policies, enforcement remains in the database even if an application or API check fails. That provides defense in depth where the retrieved data actually lives.
Keeping embeddings beside operational data also changes the retrieval path. A query can fetch matching records and their application data from the same database, potentially using one round trip instead of coordinating multiple services. An isolated vector-search benchmark can miss this benefit because it measures the search operation rather than the whole application request.
The talk speculates that vector functionality might eventually enter Postgres core, while treating that prospect as uncertain. It also leaves room for specialized vector databases, particularly where they offer capabilities such as bringing models closer to stored data. The narrower argument for Postgres concerns storing embeddings, indexing them, and fetching them alongside the rest of an application’s data.
Suggest correction
This note stays in this page until you copy or download it. Nothing is submitted; reloading clears the draft.
Citus sharding and the next scale target
The closing development target is enterprise use involving billions of vectors. Supabase was exploring sharding with Citus, another Postgres extension, to distribute data across nodes. The talk reports linear transaction scaling as Citus nodes were added, without specifying the workload or node counts. This describes an observation during development toward larger deployments, rather than a demonstrated guarantee for arbitrary billion-vector workloads.
Supabase was discussing the work with Microsoft’s Citus team and seeking design partners, especially organizations already storing billions of embeddings. For developers starting with a database, the talk’s entry point is database.new.
Suggest correction
This note stays in this page until you copy or download it. Nothing is submitted; reloading clears the draft.
Resources
From the talk
The independent Postgres extension at the center of the talk; current instructions include later improvements.
The benchmark's datasets, configuration and historical compute budgets, needed to interpret the reported comparison.
Further reading
The authoritative routing and boundary rules to check before implementing the talk's cat-partition concept.
Read the complete timestamped transcript
- 0:00
[upbeat music] Hey, everyone.
- 0:15
Um, so, yeah, I'm Coppul, the CEO and co-founder of Supabase. Um, also, thank you for having me, especially to Swyx and Ben. When Swyx asks you to come to a conference, you don't say, "Yes," you say, uh, "Definitely."
- 0:30
And this is the first time we've ever sponsored a, a conference at all, so, um, it's good to be here. So first of all, um, very apt that, uh, apparently this section of talks is, uh, Scale to Millions in a Weekend.
- 0:45
It's very apt because it's actually our tagline. Um, so what is Supabase? Um, we are a backend as a service. What does that mean? We give you a, a full Postgres database.
- 0:58
Every time you launch a database, uh, a project within Supabase, you get the database and, uh, we also provide you with authentication.
- 1:09
All of the users when you use our auth service are also stored inside that database. We give you edge functions for, uh, compute. These are powered by Deno. You can also trigger them from the database.
- 1:20
So, uh, hopefully you see where this is going. Uh, we give you large file storage. These do not get stored in your database, but the directory structure does get stored in your database, so you can write access rules, things like that.
- 1:36
We have a real-time system. This is actually the genesis of, uh, Supabase. I won't talk about it in here, but, um, you can use this to listen to changes coming out of your database, your Postgres database.
- 1:47
You can also use it to build live, uh, like cursor movements, things like this. And then most importantly for this talk, uh, we have a vector offering. This is for storing embeddings.
- 1:59
This is powered by pgvector, uh, and that's the topic of this talk. I wanna sort of make the case for pgvector.
- 2:08
So first of all, I wanted to show-- Oh, and yeah, finally, we're open source. So we've been operating since twenty-twenty. Everything we do is MIT l- licensed Apache 2 or Postgres.
- 2:19
We try to support existing communities wherever we can, and we try to coexist with them, and that's largely why we support pgvector. It is an existing tool. We contribute to, to it.
- 2:32
So I wanted to show a little bit about how the sausage is made in an open source company. And for pgvector, this started with just an email from Greg.
- 2:43
He said, "I'm sending this email to see what it would take for your team to accept a Postgres extension called pgvector. It's a simple yet powerful extension to support vector operations.
- 2:55
I've already done the work. You can find my, my pull request on GitHub." So I jumped on a call with Greg, and afterwards, um, I sent him an email the next day.
- 3:06
"Hey, Greg. The extension is merged, so, uh, it should be landing in prod this week. By the way, our docs search is currently a bit broken. Uh, is this something you'd be interested in helping with?"
- 3:19
Then fast-forward two weeks, and we released Clippy, uh, which is, of course, a throwback to, uh, Microsoft Clippy, the OG AI, AI assistant. Uh, I think we were the first to do this within docs.
- 3:33
We certainly didn't know of anyone else doing this as a doc search interface. Um, so we built an example, a template around it where you can do this within your own docs, and others followed suit.
- 3:43
Um, notably, Mozilla released this for MDN, one of the most popular dev, uh, docs, uh, on the internet, along with, uh, many other AI applications. So this is a chart of all the new databases, uh, being launched on Supabase dot com, our platform.
- 4:01
Um, it doesn't include the open source, uh, databases. So you can see where pgvector was added. It is one of the tailwinds that, um, a- accelerated the growth of new databases on our platform.
- 4:13
And since then, we've kind of become part of the AI stack for a lot of builders, especially. Uh, we work very well with, uh, Vercel, Netlify, the Jamstack crowd, and, uh, now we're launching around twelve thousand databases a week, and so this, uh, around maybe ten to fifteen percent of them are using pgvector in one way or
- 4:33
another. So thousands of AI applications being launched every week.
- 4:38
Um, also, um, some of these apps kind of fit that tagline, "Build in a weekend. Scale to millions." We've literally had apps-- We had one that scaled to a million users in ten days.
- 4:48
I know they built it in three days. Um, so a, a lot of, uh, really bizarre things that we've seen since, uh, since pgvector was launched.
- 4:58
Uh, also the app you're using today, if you're using it, uh, is powered by, uh, Supabase. So thank you, Simon, for using that inside the application. And then finally, just to wrap up that story arc, um, Greg, who, uh, emailed us at the start of the year, now works at Supabase.
- 5:14
If you attended the workshop yesterday, he actually, uh, uh, was the one leading that. [audience cheering]
- 5:22
Nice. Thanks, Greg. [audience applauding] Also responsible for a lot of the growth in Supabase, so we owe him a lot. Um, but every good story has a few speed bumps, and for pgvector that started with a tweet.
- 5:37
Um, this is one. Uh, it says, "Why you should never use pgvector, Supabase Vector Store, uh, for production. pgvector is twenty times slower than a decent vector database, Qdrant, and it's a full eighteen percent worse in finding relevant docs for you."
- 5:53
So in this chart, uh, higher is better. Um, it's the queries per second. Just making sure you all know And, uh, Postgres, the IVFFlat index is not doing well here.
- 6:06
Um, and first of all, we feel this is a unfair mischaracterization of Supabase because pgvector is actually owned by Andrew Kane, a single sole contributor who was contribu- uh, who developed this many years before Supabase came along.
- 6:22
Nonetheless, uh, we are contributors, and so, uh, when Andrew saw the tweet, um, he decided, well, HNSW, let's just add it. And, uh, we got to work with the Aurelion team and the AWS team, and it took about one month to, to build an HNSW.
- 6:40
What were the results? Uh, this is the same chart, but we just use, uh, Postgres HNSW. [audience cheering]
- 6:55
First of all, I'm not a big fan of benchmarks because it seems like I'm ragging on Qdrant here. I'm not. Unfortunately, th- they were used in the, um, in the tweet, so we had to benchmark against them.
- 7:07
Also, they're very isolated. But what you can see most importantly is that the queries per second increased and also the accuracy in- increased. They're both for Qdrant and HNSW, uh, zero point nine nine.
- 7:22
Um, also, um, you might be thinking, well, you can just throw compute at it. Maybe that's what they're doing. Um, this one actually is a blog post we released today.
- 7:31
You can read it. That's the QR code for it. This is an apples for apples comparison, uh, between Pinecone and Postgres for the same compute. We basically take all the same dollar value.
- 7:43
So it's very hard to benchmark Pinecone, but, uh, and to find accuracy. But we're measuring the, um, queries per second for Pinecone using six replicas, which cost four hundred and eighty dollars versus one of our own, uh, database systems, which is four hundred and ten.
- 8:00
So we give them a bit of extra compute and the queries per second and accuracy are, um, obviously different on the chart. Um,
- 8:11
so why am I bullish about Postgres and pgvector for this particular thing? I was chatting to Joseph, actually the CEO of Roboflow, a few months ago, and I like to tell this example.
- 8:22
Uh, it's related actually to the paint one, but a slightly different, uh, application. I like to tell it because it highlights the power of Postgres. So, um, he told me about this app where the users could take photos of trash within San Francisco and then they would upload it to an embedding store and, um, they would kind
- 8:41
of measure the trends with, of trash throughout San Francisco. You could think of this the same as, um, the PaintWTF, the, the example that he just used. Um, the problem, of course, with all of these ones is not safe for work, uh, images.
- 8:58
So, uh, why is that a problem? Uh, first of all, it fills up your embedding store. You have to store the data. It's gonna cost you more. Uh, your index is gonna slow down if you're indexing this content, and users can see this data inside the app.
- 9:17
So I thought about this for an hour, and I did a little proof of concept for him, um, just using Postgres. Uh, the solution that I thought of was partitions.
- 9:26
Now, trash is very boring, so I'm gonna use cats in this example. Uh, we're gonna segment good cats and bad cats.
- 9:34
Um, so we'll start with a basic table where we're gonna store all of our cats. We're gonna store the embeddings inside them. Then, um, when an up-- when an embedding is uploaded, uh, we're going to call a function called is_cat.
- 9:47
And here I'm going to, um, I'm gonna compare it to a canonical cat, in this case, my, uh, space cat.
- 9:54
Then if the similarity is greater than zero point eight, uh, I'll store it in a good cats partition, and everything else can just go into a bad cats partition.
- 10:04
Um, so to do this, I just took my space cat and I generated a vector of, uh, of that, and then I literally just stuffed it inside a Postgres function called is_cat.
- 10:15
Uh, the way that this works, it takes in an embedding that's the f- uh, line three, and then it's going to return, uh, l- uh, a, uh float, where a similarity basically.
- 10:26
And all it's gonna do is compare the distance to this canonical cat.
- 10:31
Uh, I'm gonna create a table to store all of my embeddings. Uh, that's line five, the embeddings, the URL of the image. And then finally on line six, we're gonna determine the similarity.
- 10:42
If it, is it a good cat or a bad cat? Um, then finally, Postgres has this thing called triggers, which are very cool. What we can do is an attach a trigger to a table.
- 10:55
So, uh, first of all, line two, we're gonna create the trigger. Line three, we're gonna do it before the insert onto this table. And then the most important one is line six.
- 11:05
And this trigger, uh, for every time you upload a cat, um, we're going to run that function that we just saw, compare it, and then store in, uh, the table, uh, the similarity.
- 11:17
New here is actually kind of a special value for Postgres. Inside the trigger is for the values that you're about to insert.
- 11:25
And then finally, what does the data look like after uploading a bunch of images? You can see here that we're storing, uh, all of our embeddings, the URLs for them, and then on the right-hand side, that, uh, similarity.
- 11:36
And now we can use that essentially to, uh, create a segment. So, uh, we just need to split the data. And the nice thing about, uh, partitions in Postgres, uh, they've got kind of all the properties of a regular table and each one individually.
- 11:51
So we can create an index only on the good cats and then to clean up the, a- as our bad cats are getting uploaded, if we ever wanna clean them up, we just drop the partition and recreate it.
- 12:02
And the way that they work on disk is all the data is stored, um, grouped together, so good cats will, uh, be, uh, fast, kept fast. Bad cats will, uh, will be dropped
- 12:15
So what does that look like in code? In Postgres code, it's really just 14, 13, 14 lines of code. Uh, here, um, just adding on line seven, you can see the path- partition that I create, and I'm going to do it by a range.
- 12:28
Here, um, uh, is cat is the column that I'm going to partition by. Then on line nine, I create good cats, and line 11 is where I actually determine the values between 0.8 and one, and then on, uh, line 13, everything else is gonna fall into the default partition.
- 12:48
So honestly, I don't even know if this is the right way to solve the problem, but I just think it's cool that I could just do that, and it's all built into Postgres.
- 12:57
So that's really why I'm bullish on Postgres. Uh, I mean, it's so extensible. It's got 30 years of engineering. It's got pretty much everything that you, all the primitives that you might need to get out of your way while you are building an AI application.
- 13:12
It's also extensible. pgvector itself is not built into Postgres. It's just an extension. So for us to add it, we just scouted around the community, or Greg did for, in this case, and then we merged it in as an extension, and it was running basically within two days.
- 13:30
Some other things worth highlighting, if you're doing RAG especially, um, Postgres has row-level security, which I think is very cool. Um, this allows you to write declarative rules on your tables inside your Postgres database.
- 13:43
And so if you're storing user data and you want to split it up by different users, you can actually write those rules. Uh, it's also a defense at, at depth.
- 13:52
So if it gets through maybe your API security, you can go directly into, uh, your database. The security is still there.
- 14:00
Um, something that's often not captured in benchmarks, a single round trip versus multiple round trips. So if you store your embeddings next to your operational data, then you do a single fetch to your database.
- 14:15
And then finally, uh, we're still early. Uh, pgvector is currently a, a extension. I can foresee it's probably going to get merged into pg core eventually. I'm not too sure.
- 14:30
Um, people often ask me, "Is there still space for a, uh, a specialized vector database?" Yes, I think there are, uh, for many other things that databases won't do.
- 14:41
Um, maybe a lot of, uh, putting models closer to the database, uh, could be one of those things. But for this particular use case where you're actually just storing embeddings, indexing them, fetching them out, I think then, yeah, uh, Postgres is, is definitely, uh, going to be, uh, moving down that direction.
- 14:59
What's next for Supabase Vector? Um, pretty simply, we have been really focused on more enterprise use cases or, uh, largely, uh, how do you store billions of vectors. Um, this is another area that needs development.
- 15:14
So we've been working on sharding with Citus, another Postgres extension, and it allows you to split your, um, your data between different nodes. And we've s- found that the transactions scale in a linear fashion as you add nodes.
- 15:29
So, um, in this case, we're going to develop this. We've been chatting to the Citus team at Microsoft. If you want to be a design partner on this, then, um, we'd love to work with you on it, and especially if you're already storing billions of embeddings.
- 15:44
And if you wanna get started, just go to database.new, and, uh, we also have apparently now our swag has finally arrived. So if you want some free credits and swag, come see us at the booth, and, uh, happy building. [audience cheering] [upbeat music]
